4K

Lecturer Tracking & Behavioral Analysis

LTC-KF20/STC-KF20

4K

Lecturer Tracking & Behavioral Analysis

LTC-KF20/STC-KF20

Dual Cam & Support Lecturer Tracking, Behavioral Analysis

The ETC-KF20 is a 4K dual cam camera. It is equipped with a new-generation processor, advanced artificial intelligence algorithms, and ISP capabilities. Thanks to its binocular design, a wide range of AI functions can be easily realized.

UHD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • STC-KF20

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Digital Zoom

  • LTC-KF20

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Digital Zoom

High-Quality Video Resolution
Excellent Visual Experience

4K
lens will take you on a journey of a visual feast

The 4K video footage output by the camera is clear, smooth and natural

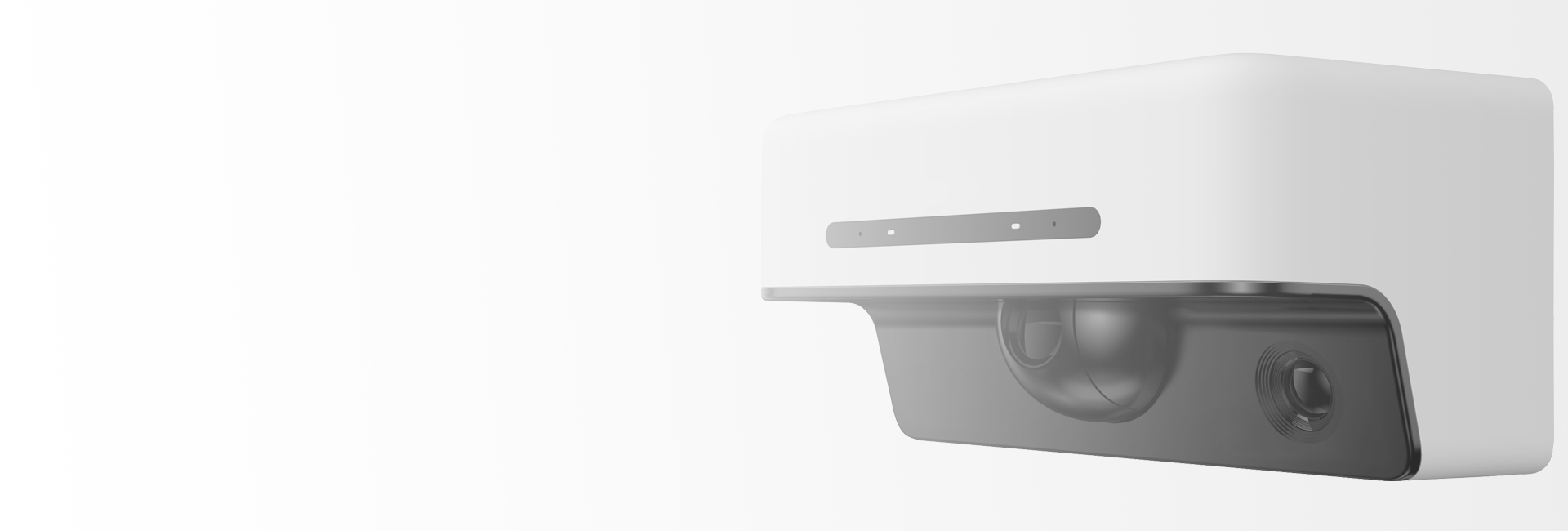

Dual-Cams Design
Dual-Screen Output

Micro gimbal
+ fixed-focus binocular design

It supports both close-up tracking and panoramic shooting. The resolution of close-up shooting is 3840*2160@30, and that of panoramic shooting is 2880*1620@30

110°HFOV
Cover A Wider Range of Scenarios

High-Capacity Battery Module
Whether Horizontal or Vertical Screen

The micro gimbal is equipped with a long - focal - length fixed - focus 4K distortion - free lens. The student panoramic configuration features a high - quality 110° large wide - angle distortion - free lens, which can cover a wider range of scenarios

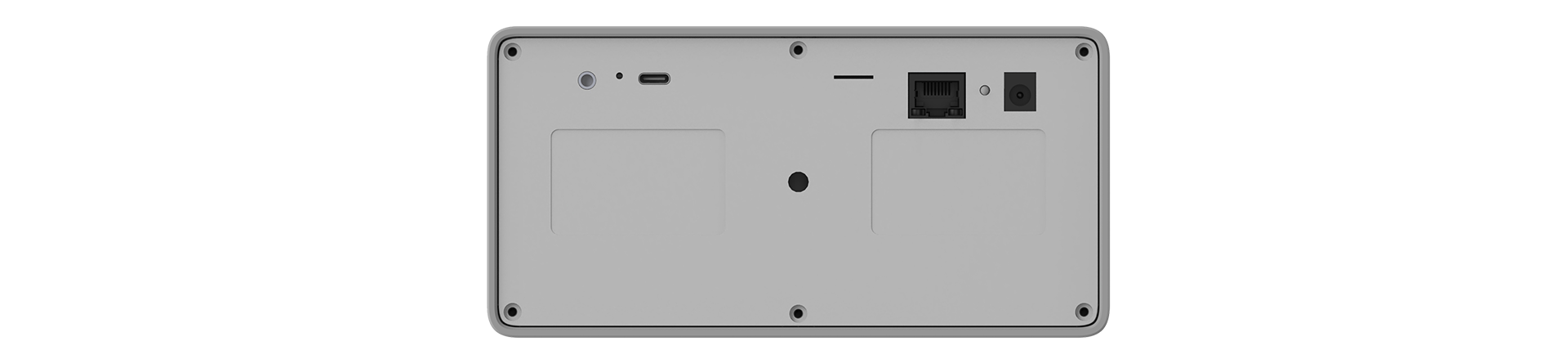

Interface
Support USB3.0, LAN


Extraordinary Intelligent Tracking
Face Detection & Lock Tracking Algorithm
Intelligent Tracking
Blackboard Writing Tracking
Abundant AI Functions

Full-Course Intelligent Tracking

Automatically identify/lock the teacher, continuously track, and complete the attendance.

Smart blackboard writing mode

It can ensure the blackboard writing is unobstructed throughout the process

Facial Expression and Gesture Detection

Support functions such as teacher attendance management and heat maps of speakers’ positions.

Anti Interference
Not Affected by Moving Objects or External Environment
Feature One
Feature Two
Feature Three

Tilt Motion

while Tracking


Keep Tracking if Lecturer Stand among the Students.
Watch Video

Track Lecturer Only

Not Track Other Moving Object


Watch Video

Track with Lights On /Off

Not Track Moving Objects on Projector.


Watch Video
Behavioral Analysis
Achieve Multi-Functional Tracking
Abundant Intelligent Functions
Abundant Intelligent Functions
Assist in Classroom Status Analysis

Recognize All the People Present

It can detect whether one or multiple people are standing and provide close - ups of the standing individuals.

Intelligent Recognition and Analysis.

It can easily analyze students’ facial expressions and behaviors.

Assist in classroom evaluation

It can handle student attendance records and output data on three key classroom rates (which might refer to things like attendance rate, participation rate, and engagement rate, etc.), collaborating with schools to conduct classroom evaluations.

Anti Interference
Low False Detection Rate
Feature One
Feature Two
Feature Three

Conduct Precise Detection

Regardless of the angle and posture in which the students stand.

Intelligent Recognition

Whether everyone present wears a mask or not does not affect the detection.

Low False Detection Rate

Movements such as stretching, raising hands, waving, roughhousing, and lying prone will not cause false detections.


Applications
Traditional Classroom/Ladder Classroom/Training Room/Multimedia Classroom


LTC-KF20/STC-KF20
Technical Data
LTC-KF20
STC-KF20
  • Camera
    Image Sensor
    1/2.8" CMOS, >8MP
    1/2.8" CMOS, >8MP
    Focal Length
    16mm
    7mm
    Iris
    F2.2
    F2.5
    FOV
    H: 21°;V: 12°
    H: 44°;V: 26°
    Digital Zoom
    4X
    White Balance
    Auto, One Push, Manual
    Exposure
    Auto, Manual, Shutter Priority, Brightness Priority
    AGC
    Auto, Manual
    Shutter Speed
    1/30 ~ 1/10,000s
  • Full View Camera
    Image Sensor
    1/2.8" CMOS, >4MP
    1/2.8" CMOS, >4MP
    Focal Length
    7mm
    2mm
    Iris
    F2.5
    F2.2
    FOV
    H: 44°;V: 26°
    H: 110°;V: 74°
  • PTZ
    Pan
    128°, 0.2°/s ~ 80°/s
    Focal Length
    70°, 0.2°/s ~ 45°/s
    60°, 0.2°/s ~ 45°/s
    Preset Number
    256
  • Interface
    Network
    RJ45 (10M/100M) interface, POE. H.265/H.264/MJPEG: 3840*2160 P30, 2880 *1620 P30, 1920*1080 P30,1280*720 P30, 640*360 P30, Support for quad-stream output. Protocols: TCP/UDP/DHCP/HTTP/HTTPS/ONVIF/VISCA OVER IP/VISCA Pass through /RTMP/RTSP
    USB 3.0
    USB3.0 Type-C, Support UVC 1.1; H.264/H.265/MJPEG: 3840*2160@30fps; 1920*1080@30fps, 1280*720@30fps, 640*360@30fps
    Audio
    1xLINE IN, 3.5mm
    TF Card
    64G (Micro TF)
  • General
    Control Protocol
    VISCA OVER IP, ONVIF
    Power
    DC12V, <12W
    Operating Temperature
    Temperature: 0°C ~ +40°C
    Storage Temperature
    Temperature: -20℃ ~ +60°C
    Dimensions (L×W×H)
    180mm×100mm×90mm
    Weight
    <1kg
