4K

Lecturer Tracking, 20x/12x Optical Zoom

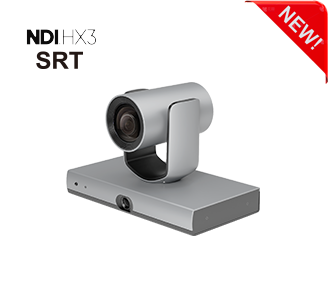

AMC-G420S/B & AMC-G431S/B

4K

Lecturer Tracking, 20x/12x Optical Zoom

AMC-G420S/B & AMC-G431S/B

20x UHD & Lecturer Tracking

Up to 20x optical zoom, max outputting 4K ultra-clear images. It enables selection of full-body, half-body or close-up shot ratios for tracking targets.

UHD Lens
Ultra High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-G431S/B

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

  • AMC-G420S/B

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

20x/12x Optical Zoom
Rich Details

20x/12x Optical Zoom
Crystal Clear from Far or Near

With 20x/12x optical zoom and 16x digital zoom to easily meet the requirements of close-up and panorama views in various meeting scenes.

High Definition Images
The camera gives you clear vision of the scenarios at 4K resolution

Wide Angle UHD Lens
Transmitting Clear Pictures

4KP30 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency.


Interface
Support HDMI, LAN, USB3.0, 3G-SDI,HDBaseT(Optional)


Extraordinary Intelligent Tracking
Accurate Identification & Stable Tracking
Feature One
Feature Two
Feature Three

In the Crowd

Automatically Identify & Lock Lecturer and Keep Tracking

Watch Video

Strong Ability

Track Even if Lecturer Wears Mask.

Watch Video

Intelligent Adjustment

Auto Adjust Tilt Angle as per Lecturer's Height.

Watch Video
Anti Interference
Not Affected by Moving Objects or External Environment
Feature One
Feature Two
Feature Three

Tilt Motion

while Tracking


Keep Tracking if Lecturer Stand among the Students.
Watch Video

Track Lecturer Only

Not Track Other Moving Object


Watch Video

Track with Lights On /Off

Not Track Moving Objects on Projector.


Watch Video
Applications
Conference/Education/Training/Event


AMC-G420S/B & G430S/B
Technical Data
AMC-G420S/B
AMC-G431S/B
  • Camera
    Image Sensor
    1/2.8” CMOS, 8.46MP
    1/2.8” CMOS, 8.46MP
    Focal Length
    4.7~94mm
    3.9~46.8mm
    Iris
    1.6~3.5
    1.6~2.8
    FOV
    59.5°~2.9°
    72.5°~6.3°
    Optical Zoom
    20X
    12X
    Digital zoom
    16X
    Focus System
    Auto, Manual, PTZ Trigger, One Push, Trigger
    Exposure Control
    Auto, Manual, Shutter, Priority, Iris Priority, Bright Priority
    Min. Illumination
    50Lux
    Shutter Speed
    1/50 ~1/10,000s
    AGC
    Auto, Manual
    White Balancee
    Auto, One Push, Manual, Static Color Temperature
    SNR
    ≥50dB
    Menu
    Yes
  • PTZ
    Pan
    -170° ~ +170°, 0.1° ~ 120°/s
    Tilt
    -30° ~ +90°, 0.1° ~ 90°/s
    Preset Number
    256
  • Interface
    HDMI 1.4
    1 × HDMI: 4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50/P30/P25
    Network
    1×RJ-45:1×10M/100M, POE supported; 1. Up to 4KP30 video output; 2. Image Compression:H.264/H.265; 3. Protocol: ONVIF/RTSP/RTMP/TCP/UDP/RTMPS; 4. Audio Compression:AAC; 5. Support Dual streams.
    USB3.0
    1. Support UVC1.1; 2. UVC Support: YUY2/H.265/MJPEG; YUY2:1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25; H.264/H.265/MJPEG: 4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 360P30/P25; 3. UAC Audio Format PCM
    3G-SDI
    1 × 3G-SDI; 1080P60/P50/P30/P25, 720P60/P50/P30/P25
    HDBaseT(Optional)
    4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50; Supports power supply and control, and the transmission distance can reach up to 70 meters
    Audio Interface
    1 × LINE IN, 3.5mm
    Control Interface
    1×RS-232 In, 1×RS-232 Out/RS-485
  • General
    Control Protocol
    VISCA(support daisy chain) / PELCO-P / PELCO-D
    Power
    DC12V, <15W
    Working Environment
    Temperature:0 ~ +40°C; humidity:10%RH ~90 %RH
    Dimensions(L×W×H)
    211mm × 137mm × 170mm
    Weight
    <1.2kg
