1080P60
Lecturer Tracking & Auto Framing
LTC2-(N)A2001NV4/A1202NV41080P60
Lecturer Tracking & Auto Framing
LTC2-(N)A2001NV4/A1202NV4 LTC2-(N)A2001NV4/A1202NV4
Output 1080P High-Definition Undistorted Video Pictures
LTC series 1080P HD tracking camera adopts advanced teacher tracking algorithm to accurately and continuously track, output clear video images, and meet the needs of various teaching scenes.
HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
-
High Definition ImagesThe camera gives you clear vision of the scenarios at 1080P resolution
1080P60
Enjoy A Clear PictureIt delivers super HD video for your lecture recording application.
-
-
InterfaceSupport HDMI, 3G-SDI, LAN, USB 3.0, LINE IN.
Lecturer Tracking
Accurate Identification & Stable Tracking
In the Crowd
Automatically Identify & Lock Lecturer and Keep Tracking
Strong Ability
Track Even if Lecturer Wears Mask.
Intelligent Adjustment
Auto Adjust Tilt Angle as per Lecturer's Height.
Anti Interference
Not Affected by Moving Objects or External Environment
Tilt Motion
while Tracking
Keep Tracking if Lecturer Stand among the Students.
Track Lecturer Only
Not Track Other Moving Object
Track with Lights On /Off
Not Track Moving Objects on Projector.
Auto Framing with No Man Involved
Using Intelligent Image Algorithm
Auto Frame All Attendees
Cameras auto zooms and covers all the attendees in the room.
Auto Zoom in for Attendee Leaving
Camera auto zooms in when there is attendee leaving the room.
Auto Zoom Out for New Attendees
Camera auto zooms out when there are new attendees entering the room.
Anti Interference
Not Affected by Moving Objects and External Environment
Intelligent Identification
The camera can recognize and frame the attendees even if they turn their backs to the camera.
Intelligent Identification
Intelligent Resolution of Wall Portraits.
Strong Anti-Interference Ability
The camera is not disturbed by moving objects.

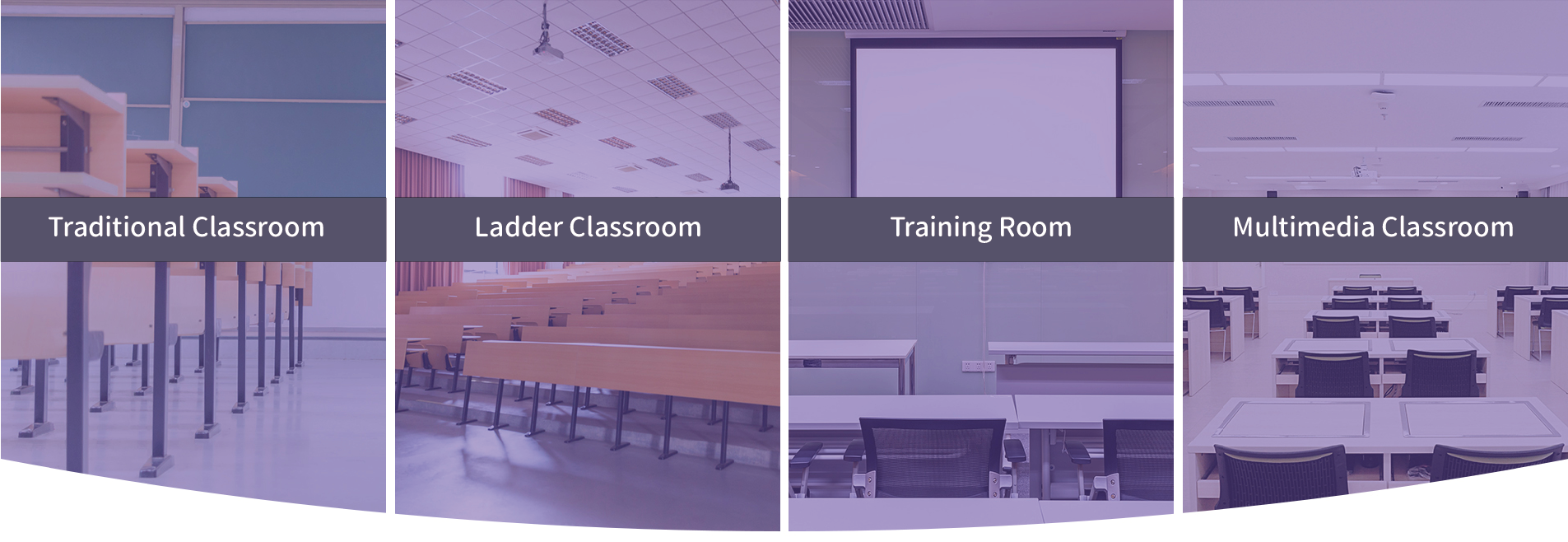

Applications
Traditional Classroom/Ladder Classroom/Training Room/Multimedia Classroom
- Technical Data
- LTC2-(N)A2001NV4
- LTC2-A1202NV4
-
Camera
- Image Sensor
- 1/2.8” CMOS, 2.14MP
- 1/2.8” CMOS, 2.14MP
- Focal Length
- 4.7~94mm
- 3.9~46.8mm
- Iris
- 1.6~3.5
- 1.6~2.8
- FOV
- 59.5°~2.9°
- 72.5°~6.3°
- Optical Zoom
- 20X
- 12X
- Digital Zoom
- 8X
- Focus
- Auto, Manual, PTZ Trigger, One PushTrigger
- Exposure
- Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
- White Balance
- Auto, One Push, Manual, Static Color Temperature
- Gain
- Auto, Manual
- Shutter Speed
- 1/60~1/10,000s
- SN Ratio
- ≥50dB
-
Full View Camera
- Image Sensor
- 1/2.8” CMOS, 2.14MP
- White Balance
- Auto
- Exposure
- Auto
- Focus
- Manual
- Focal Distance
- 2.4mm
- FOV
- Horizontal:88°, Vertical:54°
-
PTZ
- Pan
- -170° ~ +170°, 0.1° ~ 120°/s
- Tilt
- -30° ~ +90°, 0.1° ~ 90°/s
- Preset Number
- 64
-
Interface
- HDMI
- 1080P60/P59.94/P50/P30/P29.97/P25, 720P60/P59.94/P50
- Network
- RJ45 (10M/100M), optional POE； 1.Up to 1080P60； 2.Support H.264/H.265； 3.Support ONVIF/RTSP/RTMP； 4.Support AAC； 5.Support multi streaming
- USB 3.0
- 1.Support UVC 1.1； 2.Image compression H.264/H.265/MJPEG; support 1080P30/P25, 720P30/P25, 360P30/P25； 3.UAC audio compression support PCM
- 3G-SDI
- 1 × 3G-SDI; support 1080P60/P50/P30/P25, 720P60/P50
- Audio input
- 1 × LINE IN, 3.5mm audio interface
- Control Interface
- 1 × RS-232 IN, 1 × RS-232 OUT
- Local Storage
- Built-in SD card slot
-
General
- Control Protocol
- VISCA, PELCO-P, PELCO-D
- Power
- DC12V; ＜15W
- Operating Temperature
- Temperature: 0°C ~ +40°C
- Storage Temperature
- Temperature: -20℃ ~ +60°C
- Dimensions (L×W×H)
- 243mm×157mm×163mm
- Weight
- <2kg
