129-Array
8M Pickup Range / 4M Amplification
BAM129129-Array
8M Pickup Range / 4M Amplification
BAM129Make Conference Room Sound Management Simple and Efficient

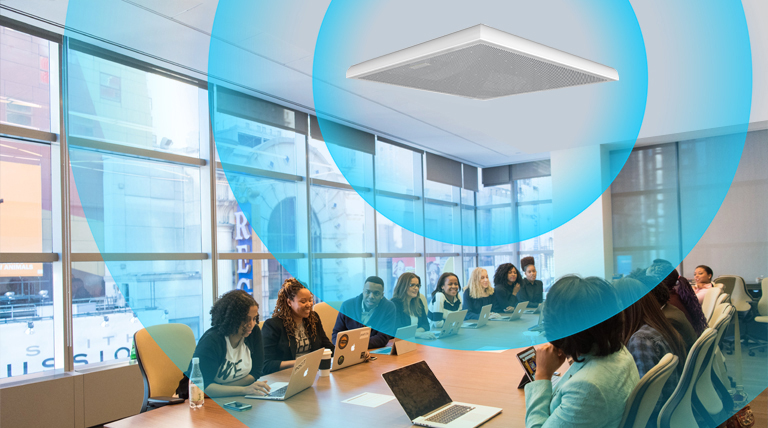

It has a 129-unit omnidirectional mic array with a sound amplification in 4 meters and a sound pickup in 8 meters. Equipped with AI algorithm, it can auto block interference such as keyboard sounds and air conditioning noise.
-
Excellent Hardware ConfigurationPickup Range & Amplification
Clearly Capturing Every Sound Detail
129-Array Ceiling Microphone has an effective sound amplification distance of up to 4 meters and can accurately pick up sounds within 8 meters.
-
Leading Audio AlgorithmsExcellent Sound Quality
33 Pickup Areas and 17 Amplification Areas
Support 33 pickup areas and 17 amplification areas. Powered by deep-learning algorithms, both local sound reinforcement and remote output maintain exceptional vocal clarity and hi-fi reproduction.
-

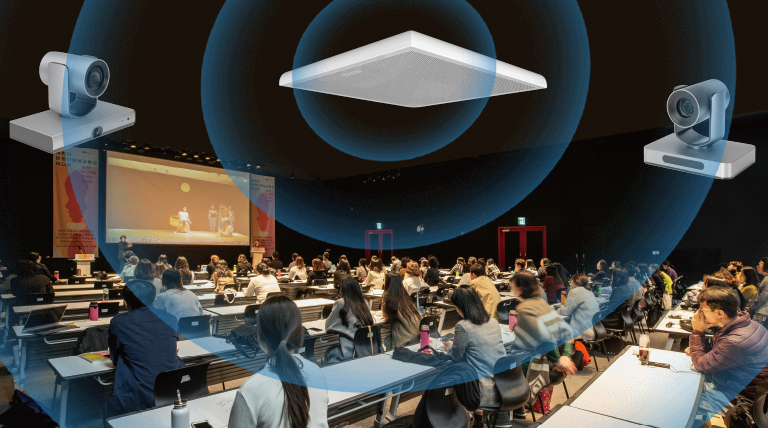

Mic-Cam TrackingPerfect Integration of Audio and Video
Microphone & Cameras
Combined with an AI/non-AI camera, an intelligent mic-cam tracking system can be simply setup. The microphone accurately captures sound and quickly identifies the speaker, then the camera immediately delivers close-up shots, effortlessly achieving perfect integration of audio and video.
-
Support DanteHigh Compatibility
Low - Latency and High - Fidelity Audio Transmission
It supports the international Dante standard. With just one Ethernet cable, it can achieve low - latency and high - fidelity audio transmission. It is also compatible with other Dante devices.
-

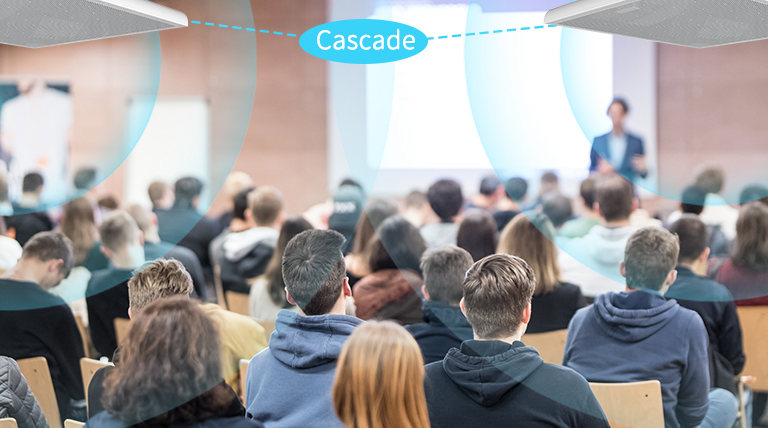

Support CascadeSuitable for Larger Spaces

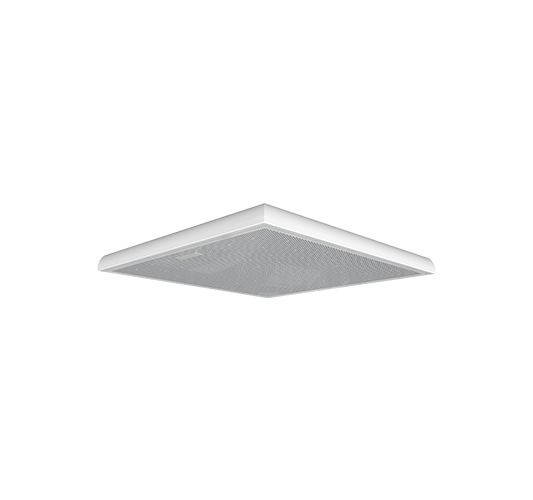

129-Array Ceiling Microphone
129-Array Ceiling Microphone supports multi-unit cascading and can be connected to wireless microphones. There’s no need to separately pair an audio processor during use. Moreover, they support control via infrared, 485, network, etc.
- Technical Data
- BAM129
-
Algorithm
- Supported Algorithms
- AFC, ANS, AEC, AGC, ARR
- Acoustic Feedback Gain
- ≥18dB
- Noise Reduction Amplitude
- ≥30dB
- Echo Cancellation Amplitude
- ≥90dB
- Echo Cancellation Length
- ≥1s
- Reverberation Suppression
- ≥18dB
- Maximum Gain
- ≥30dB
- AI Noise Reduction
- Support
- Automatic Mixing
- Support
- Beamforming
- Support
-
Hardware
- Sampling Rate
- 48K
- Frequency Response
- 20Hz~20KHz，±0.5dB
- SNR
- 100dB
- Distortion Degree
- ≦0.1%
- Input Impedance (Balanced)
- 20KΩ
- Output Impedance (Balanced)
- 200Ω
- Maximum Input Level (Balanced)
- 4dBu
- Maximum Output Level (Balanced)
- 10dBu
- Dante Audio
- Support
- Cascading Function
- Support
- 485 Central Control Interface
- Support
- Input Power Supply
- DC 12V-48V/POE
- Power
- 25W
-
General
- Operating Temperature
- 0℃~40℃
- Storage Temperature
- -20℃~60℃
- Dimensions (L x Wx H)
- 600mm×600mm×42.8mm
-
