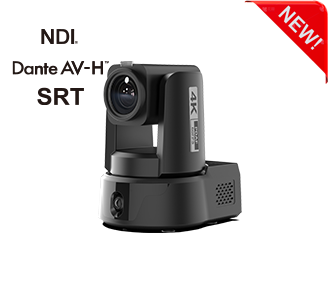

4KP60
30x/20x/12x Optical Zoom
PVC-G530P/G520P/G512P4KP60
30x/20x/12x Optical Zoom
PVC-G530P/G520P/G512P PVC-G530P/G520P/G512P
4K@Dual Cam, up to 30x, multiple tracking modes
Up to 4KP60 video output, dual cam design with 4K CMOS sensor for UHD video and 30x zoom for longer shots. It can achieve multiple tracking functions: Lecturer Tracking, Auto Framing, and Gesture Control.
UHD Lens
Ultra High Definition Lens Gives You a Higher-Definition Vision
-
Ultra High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolution
4KP60
Enjoy a Clear PictureIt delivers super UHD video for your work application.
-
-
High Quality 30x/20x/12x Optical ZoomSuitable for Large-Scene Recording Work
Up to 30x Optical Zoom Show More Detail
The 4K ultra-high-definition lens supports a maximum of 30x lossless zoom, ensuring clear image details even when zoomed in.
-
Supports Most Mainstream ProtocolsFaster, Clearer, and Safer Transmission
NDI HX3, SRT
The camera supports protocols such as NDI HX3, SRT, enabling clearer, faster, and more secure video transmission.
-
InterfaceSupport 3G-SDI, HDMI, LAN, USB 2.0, LINE IN.
Lecturer Tracking
Accurate Identification & Stable Tracking
In the Crowd
Automatically Identify & Lock Lecturer and Keep Tracking
Strong Ability
Track Even if Lecturer Wears Mask.
Intelligent Adjustment
Auto Adjust Tilt Angle as per Lecturer's Height.
Gesture Control
More convenient operation
Only Use Gestures to Indicate
During recording/live streaming
It won’t be interrupted due to operations.
Support Recognition of Multiple Gestures
You can control the camera through gestures such as zooming in/out.
Efficient, Fast, and Intelligent
Intelligent algorithms help the camera quickly recognize gestures and respond accordingly.
Auto Framing with No Man Involved
Using Intelligent Image Algorithm.
Auto Frame All Attendees
Cameras auto zooms and covers all the attendees in the room.
Auto Zoom in for Attendee Leaving
Camera auto zooms in when there is attendee leaving the room.
Auto Zoom Out for New Attendees
Camera auto zooms out when there are new attendees entering the room.
Anti Interference
Not Affected by Moving Objects and External Environment
Intelligent Identification
The camera can recognize and frame the attendees even if they turn their backs to the camera.
Intelligent Identification
Intelligent Resolution of Wall Portraits.
Strong Anti-Interference Ability
The camera is not disturbed by moving objects.
Applications
Education/Conference/Broadcasting/Events
- Technical Data
- PVC-G530P
- PVC-G520P
- PVC-G512
- PVC-G520P
-
Tracking Camera
- Focal
- f=5.2mm ~ 156mm
- f=5.2 ~ 106mm
- f=3.4mm ~ 40.3mm
- Iris
- F1.6 ~ F5
- F1.6 ~ 3.5
- F1.8 ~ F3.6
- Optical Zoom
- 30x
- 20x
- 12x
- HFOV
- 56.5° ~ 1.9°
- 56.5°~2.8°
- 81° ~ 7.6°
- Image Sensor
- 1/2.8” CMOS, 8.46MP
- Distortion Correction
- Support
-
Full View Camera
- Image Sensor
- 1/2.8” CMOS, 8.46MP
- Focal
- f=2.8mm
- Iris
- F2
- FOV
- H：94° V：62°
-
Image Parameters
- Image Style
- One-click switching between multiple image styles
- Noise Reduction
- 2D & 3D DNR
- Shutter Speed
- 1/25s ~ 1/10,000s
- Gain
- Auto, Manual
- White Balance
- Auto, Manual, Indoor, Outdoor, Auto Tracking, Static Color Temperature, One push, Follow the full-view
- BLC
- Support
- WDR
- Support
- Exposure Mode
- Auto, Manual, Shutter Priority, Brightness Priority, Iris Priority, Auto Tracking, Follow the full-view
- Metering Mode
- Top, Bottom, Center, Average, Left, Right
- SNR
- ≥50dB
- Parameter Adjustment
- Image parameters of close-up and full-views can be adjusted independently
- Image Flip
- Horizontal mirroring, Vertical flipping
-
PTZ
- Pan
- -130° ~ +130°, 0.1° ~ 80°/s
- Tilt
- -30° ~ +90°, 0.1° ~ 60°/s
-
Software Function
- Preset Position Freezing
- Supported
- PIP
- Supports picture-in-picture function for both close-up and full-views PIP position：top-left, bottom-left, top-right, and bottom-right.
- OSD
- Customized overlay of OSD character
- WebUI
- Supports full-life cycle O&M operations including remote device configuration, firmware upgrade, reboot and reset via WebUI
- Software Upgrade
- 1. USB upgrade, supporting Windows and Mac systems. 2. WEB upgrade, Supports Edge, Chrome, Safari and other major browsers 3. Network MgrTools Updated: Supports Windows & Mac
-
Powerful AI
- Lecturer Tracking
- 1. Supports everywhere tracking, zone tracking, and selected target tracking 2. Supports adjustable target tracking aspect ratio(Full body, half body, close-up) 3. Supports setting the target position of the image (left, middle, right) 4. Supports the setting of blocking areas and preset areas 5. Support switching target and adjustable body size by remote contorl 6. Gesture Control
- Auto Framing
- Multi-person framing (framing within designated zone) Support people counting
- Custom Tracking Area
- Supports customizing any image area as the tracking region and eliminating interference in complex scenes.
-
Interface
- HDMI
- 1-channel HDMI 2.0, switchable close-up & full-view output 1. Audio: PCM, 48K, dual-channel 2. HFR Off: 3840*2160@30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; HFR On (Only close-up View): 3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 3. i-frame resolutions: 1080i @60/59.94/50fps； 4. Broadcast TV resolutions: 2160*3840@59.94/29.97fps; 1920*1080@59.94/29.97fps; 1280*720@59.94/29.97fpsew cam and tracking cam: max 1080P60; Output only from tracking cam: max 1080P60; Support broadcast resolution: max 1080P59.94/P29.97;
- HDBaseT（Optional）
- One channel of HDBaseT, support output audio； Video resolution and format consistent with HDMI
- 3G-SDI
- One channel of 3G-SDI, switchable close-up & full-view output 1. HFR Off: 1920*1080@60/50/30/25fps；1280*720@60/50/30/25fps； HFR On (Only close-up View): 1920*1080@60/50/30/25fps；1280*720@60/50/30/25fps； 2. i-frame resolutions: 1080i @60/59.94/50； 3. Broadcast TV resolutions: 1920*1080@59.94/29.97fps；1280*720@59.94/29.97fps;
- Network
- 1-channel RJ-45 interface, supporting 10M/100M/1000M adaptive Ethernet. 1. Video formats: H.264/H.265 2. Video resolutions: Output with close-up view and full-view: Supports close-up/full-view output switching, 2160*3840@30/25fps； 1920*1080@60/50/30/25fps；1280*720@60/50/30/25fps；640x360@60/50/30/25fps; Only output close-up view: 2160*3840@60/50/30/25fps；1920*1080@60/50/30/25fps；1280*720@60/50/30/25fps； 640x360@60/50/30/25fps; 3. Network protocols: RTSP、RTMP(S)、Visca Over IP、ONVIF、SRT、NDI HX3、Dante AV-H、TCP、UDP; 4. Audio compression: AAC、G.711； 5. Supports multi-stream output. 6. Supports Web UI, HTTP API
- USB
- 1-channel USB 2.0 Type-B 1. Audio output: UAC 2. UVC 1.1 protocol. 3. UVC video formats: H.264/H.265/MJPEG； 4、UVC output: 3840*2160@30/25fps；1920*1080@30/25fps；1280*720@30/25fps；640x360@30/25fps
- Audio
- 1-channel LINE IN, 3.5mm; support ACC、G.711;
- REF
- 1-channel REF, Reserved
- Control
- 1-channel RS-232 IN, 1-channel RS-232 OUT; Support daisy chain
- Power
- Input: 100-240V, 50-60Hz, output: DC 12V, 1.5A, ＜18W
-
General
- Preset Number
- 256
- Indicator Light
- Power Indicator
- IR Remote Control
- Supported
- Installation Method
- Upright, Inverted
- Control Protocol
- VISCA / PELCO-P / PELCO-D
- Operating Environment
- Temperature: 0°C~+40°C; Humidity: 10%RH~90%RH
- Storage Environment
- Temperature: -20°C~+60°C; Humidity: 10%RH ~95%RH
- Dimensions (L*W*H)
- 245mm*145mm*165mm
- Weight
- 1.8kg
