4K
4K UHD&121°HFOV
ZC5-F20N4K
4K UHD&121°HFOV
ZC5-F20N 4K EPTZ Camera
4K UHD EPTZ
121° Wide HFOV
1/2.8'' CMOS sensor, 8.46 MP; 121°HFOV, enable to frame more, with no distortion.
UHD Lens
Ultra High Definition Lens Gives You a Higher-Definition Vision
-
High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolution
121° UHD Lens
Super Wide HFOV4KP30 UHD Video Giving Superb Image
-
Wide-Angle LensTo Cover More Space of the Scenario
4K UHD
121° Wide Angel4K Lens with HFOV up to 121°, No Distortion
-
InterfaceSupport USB2.0 , LAN
Applications
Conference/Education
- Technical Data
- ZC5-F20N
-
Camera
- Image Sensor
- 1/2.8" CMOS, 8.46 MP
- Focal Lens
- f=1.64mm
- Iris
- F2.4
- HFOV
- 121°
- Shutter Speed
- 1/60~1/10,000s
- AGC
- Auto, Manual
- LDC
- Yes
- WDR and Auto Focus Features
- Yes
- White Balance
- Auto, Manual, One Push
- AE Control
- Auto, Manual, Shutter Priority
- MOD (Min Object Distance)
- 60 cm
- DOF (Depth of Field)
- ≈ (12-16) m
-

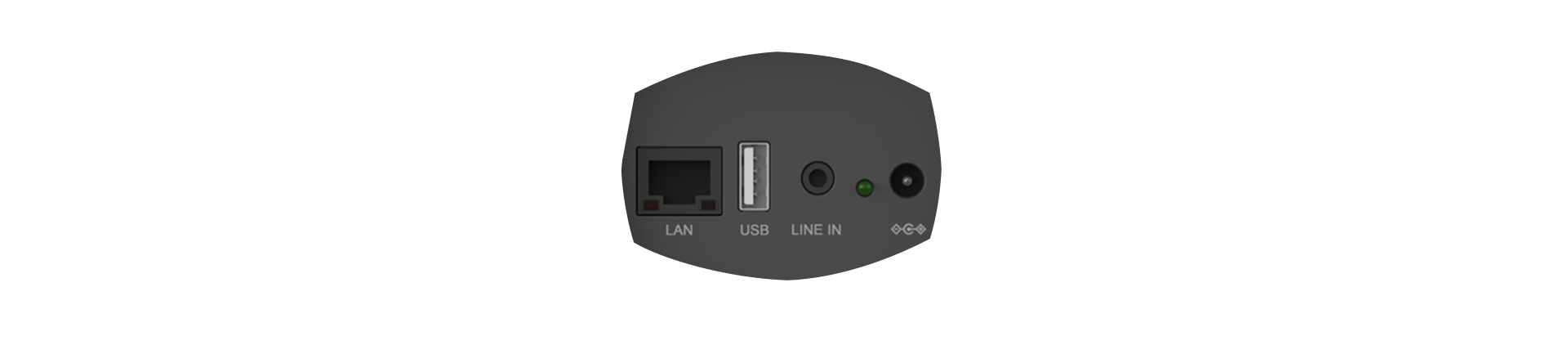

Interface
- Network
- RJ45 (10M/100M), optional POE; 1.Up to 4KP30; main stream：1080P30/25, 720P30/25，360P30/25; sub stream：4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25; Image compression: H.264/H.265; Support HTTP/TCP/UDP/RTSP/RTMP/ONVIF; Support AAC
- USB 2.0
- 1.Support UVC; 2.Image compression: H.264/H.265/MJPEG; support 4K, 1080P, 720P, 360P
- Audio Interface
- 1 × LINE IN
-
General
- Power
- DC12V; <5W
- Address
- 0~63
- Operating Temperature
- 0°C ~ +40°C
- Storage Temperature
- -20℃ ~ +60°C
- Dimensions (L×W×H)
- 149mm × 76mm × 58mm
- Weight
- ≤0.5kg
