4/3"
PDAF, Free-D, 12G-SDI
PBC-120M4/3"
PDAF, Free-D, 12G-SDI

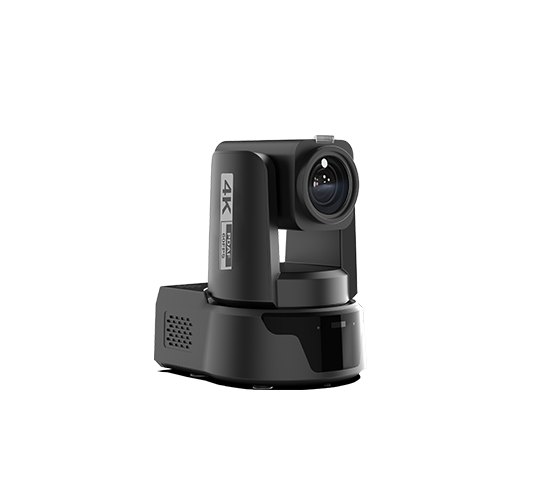

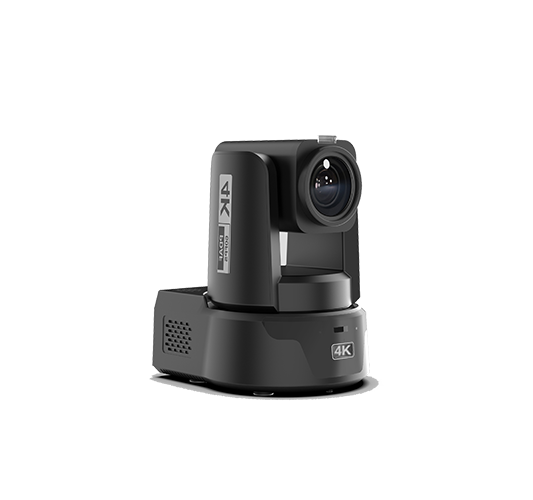

PBC-120M PBC-120M
4/3″ CMOS, 20MP, 4KP60/P59.94
The camera has professional image details and colors. 20x optical zoom, 71°HFOV. With OIS + EIS anti - shake, PDAF + CDAF focusing, OLPF for moiré removal, and ND filter for light adjustment. Support 12G-SDI.

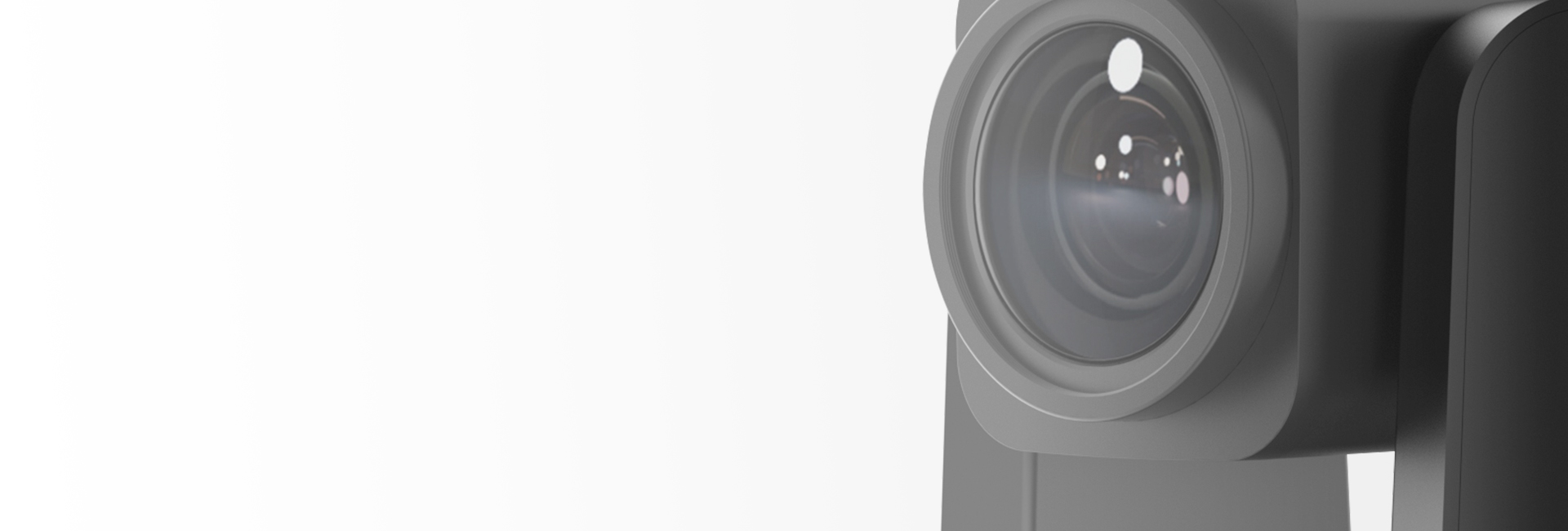

UHD Lens
Ultra High Definition Lens Gives You a Higher-Definition Vision
-
Excellent Texture and Abundant DetailsShocking Visual Experience

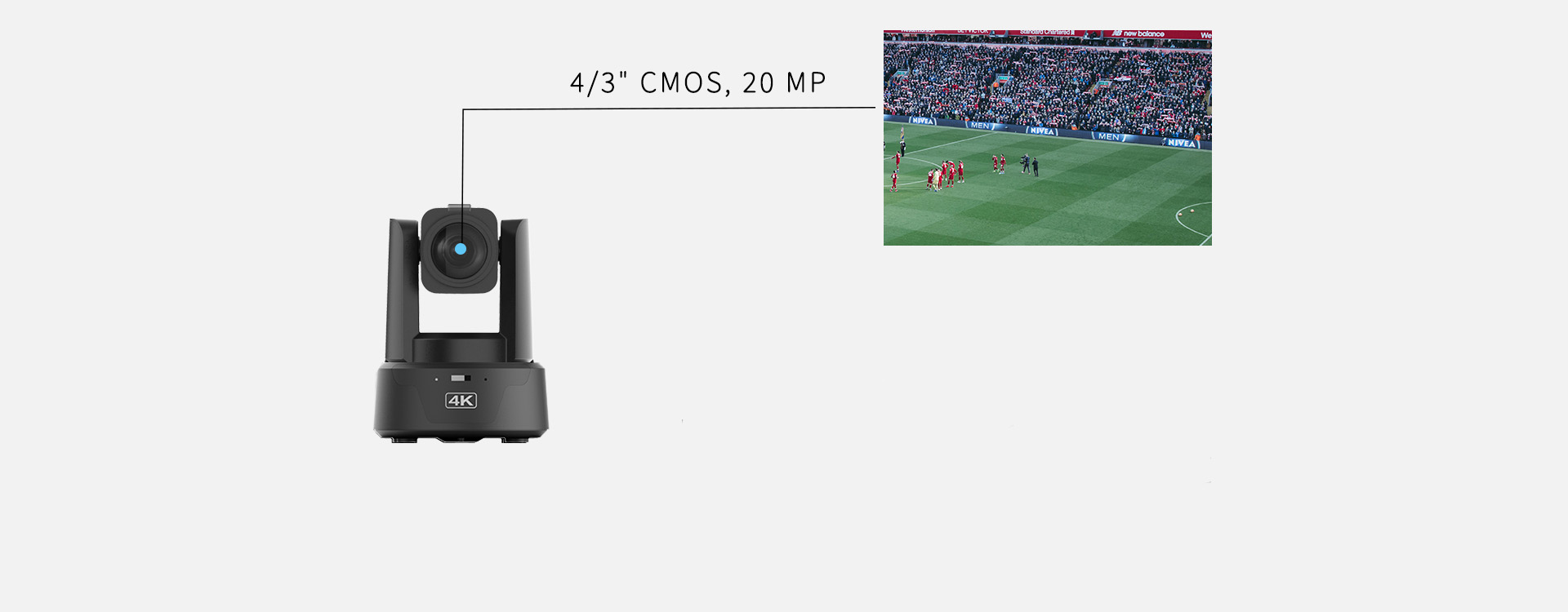

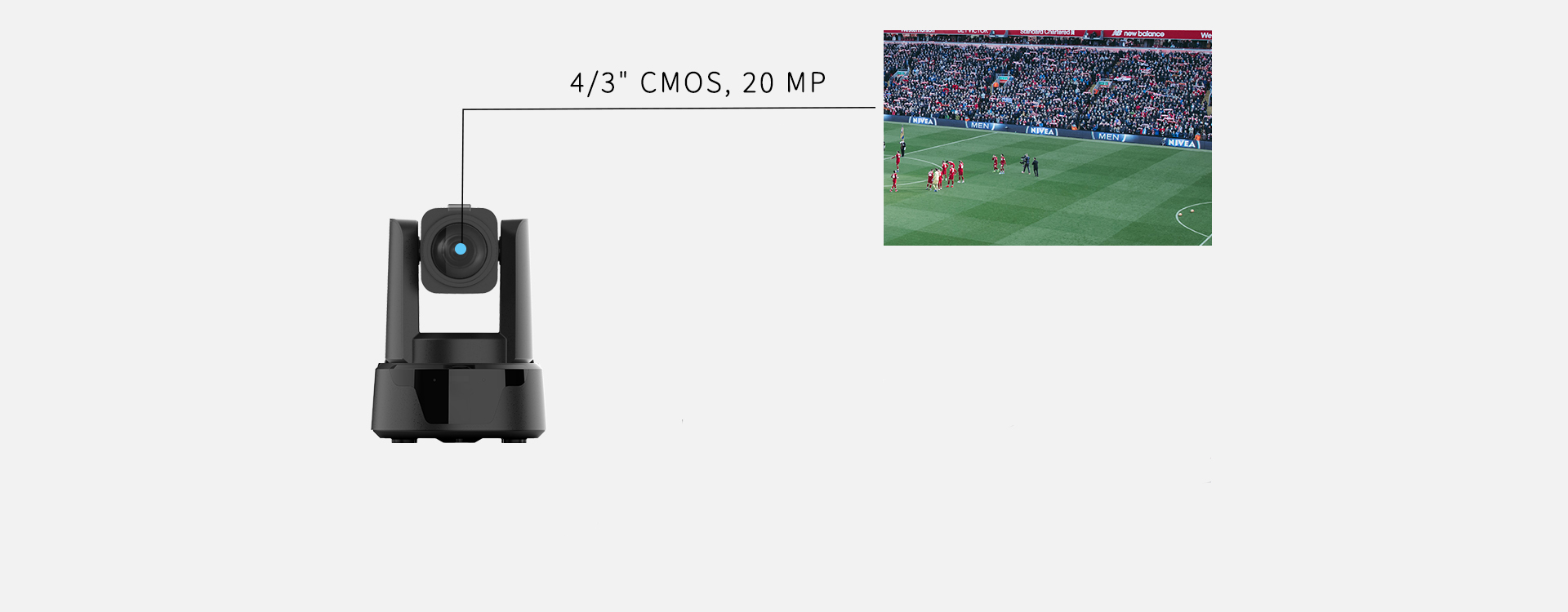

4/3″ CMOS
Broadcast-grade UHD ImagingFitted a 4/3″ CMOS sensor, 20 MP lens supports high quality broadcast-grade dual-camera output up to 4K P60/P59.94.
-
-
Suitable for Large-Scale Scenes.Lossless Enlargement with Clear Details
20x Optical Zoom

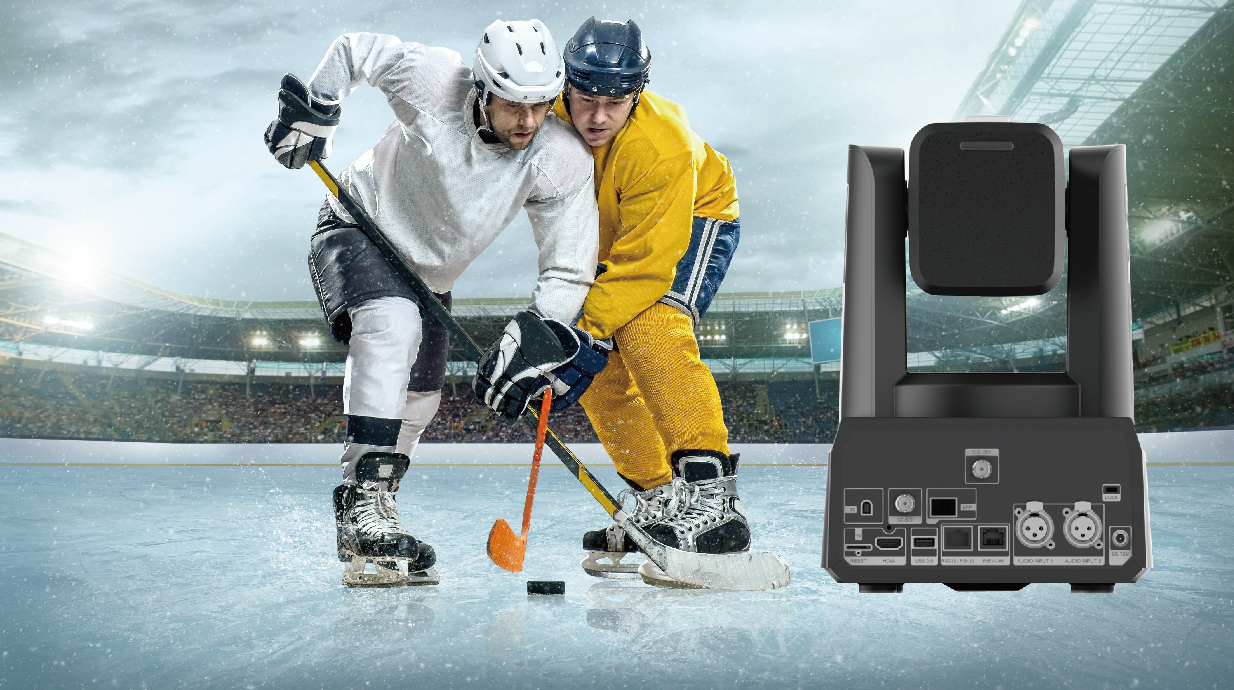

Diverse Application Scenarios.It vividly captures rich details even from far distance. Ideal for large-scale program production and live sports broadcasts, its compact design allows seamless adaptation to complex environments.
-
Multifunctional InterfaceConvenient and Efficient Output

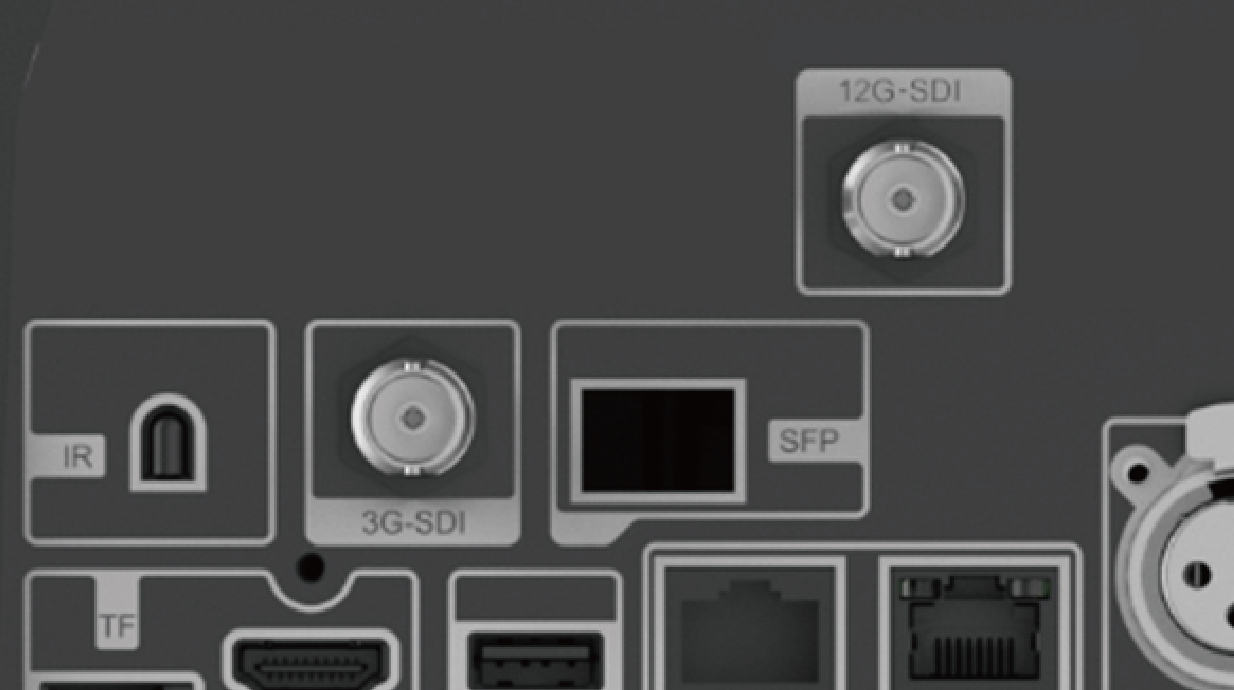

12G-SDI&3G-SDI Simultaneous Output
Equipped with 12G-SDI, it can output 4K P60 images. This powerful function fully meets the recording requirements for broadcast-level high-quality films. At the same time, it supports simultaneous output of images via 12G-SDI and 3G-SDI. During recording, the 3G-SDI images can be used for auxiliary monitoring.
-
Exceptional Focusing TechnologyKeep a Clear View Throughout the Shot
PDAF+CDAF
The combination of PDAF and CDAF focusing technologies enables instant focusing on people/objects in large scenes, at high zoom, and during high-speed movement, ensuring continuous clear image output.
-
Professional Anti-ShakeOutput Stably from Start to Finish
Excellent OIS and EIS technologies
OIS and EIS fit diverse indoor/outdoor scenarios. Even in harsh outdoor conditions, the camera, powered by dual OIS and EIS, ensures steady, high-quality footage during recording.
-
Reduce the Interference of StreaksPresent Clear Image
OLPF Technology Eliminates Moiré Patterns
OLPF technology can reduce and eliminate moiré patterns caused by grids, shutters, and electronic screens during shooting. Even when using an LED screen as the background, it can stably output high-quality footage for film and television production.
-
A Fantastic DesignAdjustable Camera Light Intake
Multiple Levels of ND Filters are Adjustabl
The adjustable ND filter enables users to control the camera’s light intake. Even in direct daytime sunlight, it can still output high - quality images. The pre - reserved threaded interface allows direct installation of personalized filters, adding a unique atmosphere to the film.
-
Boost Virtual Live StreamingImmersive Experience
Free-D Protocol, Seamless Connection in AR/VR Creation
The Free-D protocol can be used for AR/VR creation. Ensure seamless integration between virtual elements and real scenes, bringing a highly immersive viewing experience to the audience.
-
Support multiple protocolsConvenience for the Production and Transmission
Full NDI(Optional)
Optional Full NDI, SDVoe or HDBaseT,It facilitates the lossless and efficient transmission of videos, significantly saving wiring costs and time and improving the efficiency of film and television production.
-

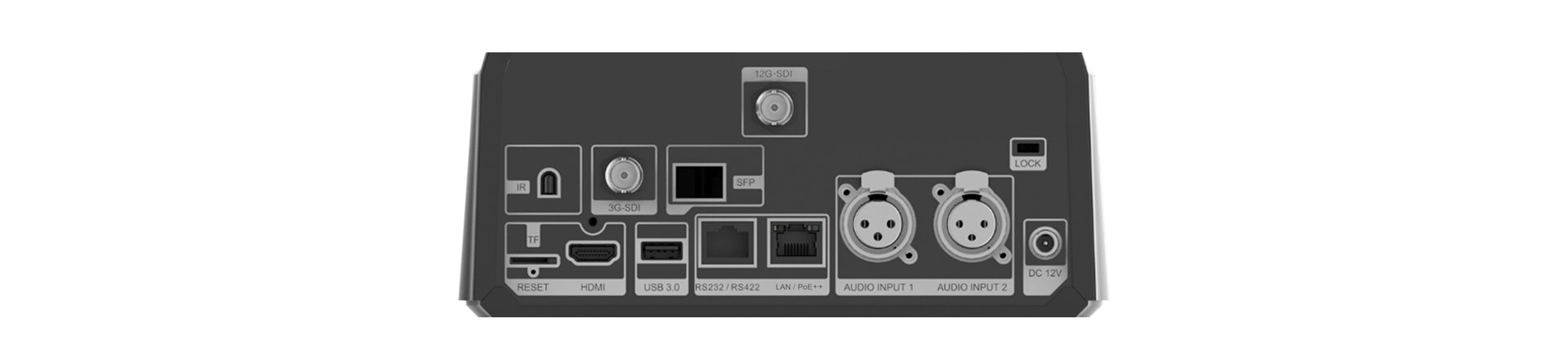

PBC-120M Interface12G-SDI, 3G-SDI, HDMI, LAN, USB 3.0 etc.
Lecturer Tracking
Accurate Identification & Stable Tracking
In the Crowd
Automatically Identify & Lock Lecturer and Keep Tracking
Strong Ability
Track Even if Lecturer Wears Mask.
Intelligent Adjustment
Auto Adjust Tilt Angle as per Lecturer's Height.
Gesture Control
More convenient operation
Only Use Gestures to Indicate
During recording/live streaming
It won’t be interrupted due to operations.
Support Recognition of Multiple Gestures
You can control the camera through gestures such as zooming in/out.
Efficient, Fast, and Intelligent
Intelligent algorithms help the camera quickly recognize gestures and respond accordingly.
Anything Tracking
Not Affected by Moving Objects and External Environment
Track Any Object in the Frame by Selection
Make tracking a trend and a habit, and create an immersive creative atmosphere.
Applications
Education/Conference/Broadcasting/Events
- Technical Data
- PBC-120M
-
Tracking Camera
- Image Sensor
- 4/3" CMOS, 20MP
- Max Resolution
- 4KP60
- Focal Length
- f=9.8mm～186mm
- Iris
- F2.8～F4.5
- Optical Zoom
- 20X
- Digital Zoom
- 8X
- Field of View
- Horizontal：71°～4°；Vertical：40°～2°；Diagonal：79°～4.5°
- OLPF
- Supported
- ND Filter
- Electronic：1/64，1/16，1/4，1
- Distortion Correction
- Supported
- Focusing Mode
- PDAF+CDAF
-
Image Parameters
- Image Style
- One-key switching among multiple image styles
- DNR
- 2D & 3D
- Min Illumination
- 0.5Lux
- Shutter Speed
- 1/25-1/10,000s
- Gain
- Auto, Manual
- White Balance
- Auto, Manual, Indoor, Outdoor, Auto Tracking, Static Color Temperature, One push
- Backlight Compensation
- Supported
- WDR
- Supported
- High Dynamic Range
- Supported
- Exposure Mode
- Auto, Manual, Shutter Priority, Brightness Priority, Iris Priority, Auto Tracking
- Metering Mode
- Top, Bottom, Center, Average, Left, Right
- S/N Ratio
- ≥50dB
- Parameter Adjustment
- Image parameters of close up and full views can be adjusted independently
- Color Matrix
- Supported
- Image Stabilization
- OIS + EIS
- Image Flip
- Horizontal mirroring, Vertical flipping
-
PTZ
- Horizontal
- -170°~+170°；0.05°~120°/s
- Vertical
- -30°~+90°；0.05°~90°/s
-
Software Function
- OSD
- Customized overlay of OSD character
- Preset Position Freezing
- Supported
- Software Upgrade
- 1. USB upgrade, supporting Windows and Mac systems; 2. WEB upgrade.
-
Powerful AI
- Lecturer Tracking
- 1. Supports everywhere tracking, and select target tracking; 2. Supports adjustable target tracking aspect ratio(Full body, half body, close up); 3. Supports setting the target position of the image (left, middle, right); 4. Supports the setting of preset areas; 5. Support switching target and adjustable body size by remote contorl; 6. Gesture control
- Anything Tracking
- Track any object besides human body
-
Interface
- HDMI
- 1-channel HDMI 2.01. Audio: PCM, 48K, dual-channel; 2. Color space: YUV/RGB 444 (8bit), YUV 422 (10bit), YUV 420 (8bit) [The default color space is YUV 422 (10bit)]; 3. Video resolutions: 3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 4. i-frame resolutions: 1080i@60/59.94/50fps; 5. Broadcast TV resolutions: 3840*2160@59.94/29.97fps; 1920*1080@59.94/29.97fps; 1280*720@59.94/29.97fps
- Network
- 1-channel RJ-45 interface, supporting 10M/100M/1000M adaptive Ethernet. It comes standard with a BT standard POE module and can output audio in AAC format. 1. Video formats: H.264/H.265/MJPEG; 2. Video resolutions:3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 640*360@60/50/30/25fps; 3. Network protocols:RTSP, RTMP, RTMPS, Visca Over IP, ONVIF, SRT, NDI HX3, Dante AV-H; 4. Audio compression: AAC5. Supports multi-stream output; 6. Supports Web UI, HTTP API
- USB
- 1-channel USB 3.0 Type-A (switchable between HOST and DEVICE); 1. Audio output: UAC (PCM, 48K, dual-channel); 2. Color space: RGB 420; 3. Compatible with USB 2.0; 4. UVC 1.1 protocol; 5. UVC video formats:•USB 3.0:H.264/H.265/MJPEG: 3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 640*360@60/50/30/25fps; YUY2/NV12：1920*1080@30/25fps； 1280*720@30/25fps； 640*360@30/25fps； •USB2.0：H.264/H.265/MJPEG：1280*720@30/25fps； 640*360@30/25fps
- 3G-SDI
- One channels of 3G-SDI, with audio output supported (PCM, 48K, dual-channel); 1. Video resolutions:1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps
- 12G-SDI
- One channels of 12G-SDI (BNC), with audio output supported (PCM, 48K, dual-channel). 1. Video resolutions:3840*2160@60/50/30/25fps; 1920*1080@60/50/30/25fps; 1280*720@60/50/30/25fps; 2. i-frame resolutions:1080i@60/59.94/50fps; 3. Broadcast TV resolutions:3840*2160@59.94/29.97fps; 1920*1080@59.94/29.97fps; 1280*720@59.94/29.97fps
- SFP
- One fiber optic network interface
- Full NDI（Optional）
- One channel of Full NDI, capable of audio output, supporting POE++ (mutually exclusive with HDBaseT and SDVoE). The video resolutions and formats are the same as those of HDMI
- SDVoE（Optional）
- One channel of SDVoE, which can output audio and supports POE++. (mutually exclusive with HDBaseT and Full NDI). The video resolutions and formats are the same as those of HDMI
- HDBaseT（Optional）
- One channel of HDBaseT, capable of audio output and supporting POE++ (mutually exclusive with SDVoE and Full NDI). The video resolution and format are the same as those of HDMI
- Audio
- Two Audio-Input XLR Cannon sockets:1. Phantom power supply; 2. Support AAC/UAC; 3. Sampling rates: 16k, 32k, and 48k.
- Factory Reset
- Can be restored by pressing the reset button
- Control
- One channel RS-232/422（RJ45）Support Visca, Pelco-P, and Pelco-D protocols
- Security Lock Slot
- One channel Kensington Lock
- TF Card
- External TF card, MAX 2TB, setting by web UI
- Power
- Input: 100-240V, 50-60Hz, output: DC 12V, 5A
-
General
- Preset Number
- 256
- Indicator Light
- Power indicator, status indicator, dual tally lights
- Language
- English
- Installation Method
- Upright, Inverted
- Operating Temperature
- Temperature: 0°C~+40°C; Humidity: 10%RH~90%RH
- Storage Temperature
- Temperature: -20°C~+60°C; Humidity: 10%RH ~95%RH
- Dimensions (L*W*H)
- 208.3mm*238mm*299.3mm
- Weight
- ≤5kg
- Infrared Remote Control
- Supported
