1080P60

HD Image Quality

AMC-G320WEV2

1080P60

HD Image Quality

AMC-G320WEV2

Wireless Transmission up to 200 meters

1/2.8'' 2.14MP CMOS sensor, supporting 1080P60 video output; 20x optical zoom; Built-in 5G 2x2 MIMO WiFi, wireless transmission up to 200 meters; Built-in lithium battery pack, usage time over 6 hours;

UHD Lens
Ultra High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-G320WEV2

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

High-Quality Video Resolution
Excellent Visual Experience

1080P60
High-Definition Image

1/2.8-inch CMOS sensor, 2.14 million pixels, 20x optical zoom, capable of outputting 1080P60 high-definition video, accurately recreating the authentic classroom scene.

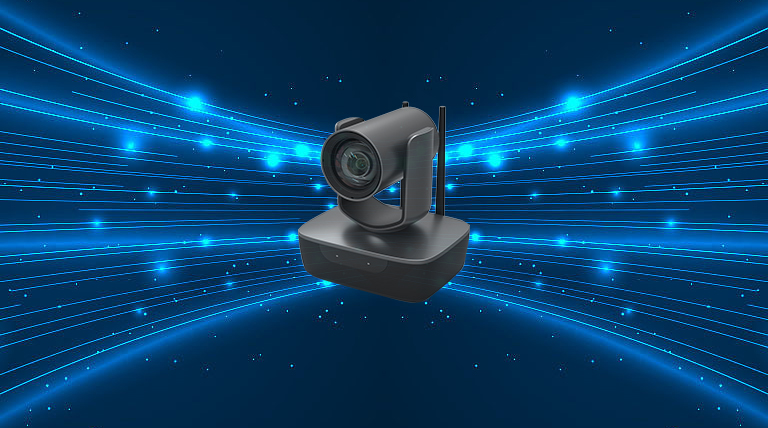

Wireless Transmission
Convenient Transmission Mode

5G 2x2 MIMO WiFi
Transmission distance up to 200 meters

For longer transmission distances, a higher gain antenna can be used.

Equipped with A Battery Module
Capable of Self-Powered Operation

High-Capacity Battery Module
Whether Horizontal or Vertical Screen

Built-in 5200mAh rechargeable lithium battery pack, battery usage time > 6 hours

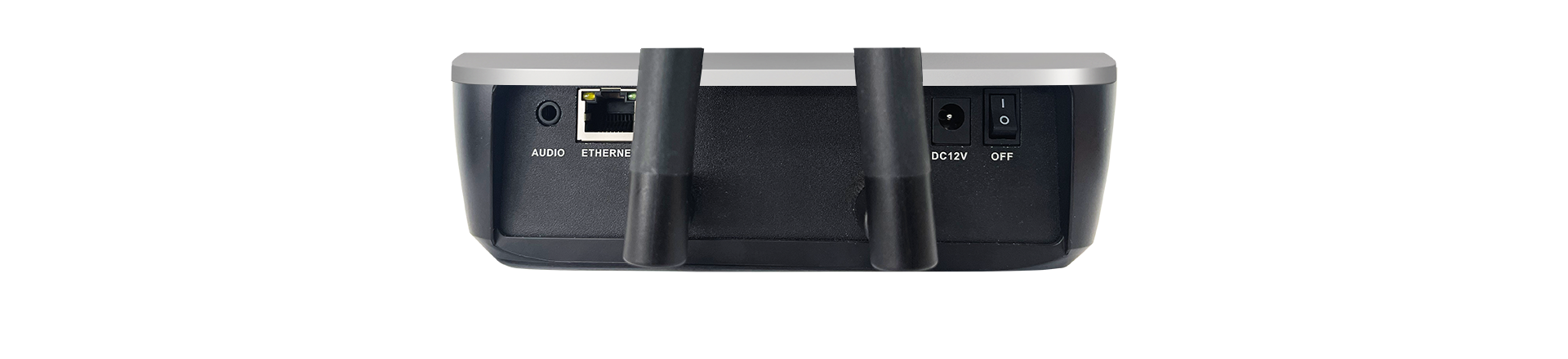

Interface
Support LAN, Audio


Applications
Conference/Education/Training/Event


AMC-G320WEV2
Technical Data
AMC-G320WEV2
  • Camera
    Image Sensor
    1/2.8” CMOS, 2.14MP
    Focal Lens
    f=5.2mm ~ 98mm
    Iris
    F1.5 ~ F3.0
    FOV Horizontal
    62.6° ~ 4.7°
    Zoom
    Optical: 20X, Digital: 12X
    Focus
    Auto, Manual, One Push, PTZ
    Exposure
    Auto, Manual, Shutter Priority, Iris Priority, Intelligent
    White Balance
    Auto, Manual, Auto Tracking, One Push, Indoor, Outdoor
    DNR
    2D/3D
    BLC
    Support
  • PTZ
    Pan
    -170° ~ +170°, 0.1° ~ 120°/s
    Tilt
    -30° ~ +90°, 0.1° ~ 90°/s
    Preset Number
    256
  • Interface
    Network
    1×10M/100M, 1. Up to 1080P60 video output; 2. Image Compression: H.264/H.265; 3. Protocol: HTTP/TCP/UDP/RTSP/RTMP/ONVIF; 4. Audio Compression: AAC
    Audio
    1×LINE IN, 3.5mm
  • General
    Power
    50 ~ 60Hz, DC12V, <30W
    Operating Temperature
    0°C ~ +40°C
    Storage Temperature
    -20°C ~ +60°C
    Dimensions(L×W×H)
    176mm × 167mm × 189mm
    Weight
    <1.7kg
  • Wireless
    Frequency Range
    5.15 ~ 5.35GHz, 5.425~ 5.725GHz, 5.745 ~5.850GHz
    Antenna Method
    2*2 MIMO Beamforming
    Channel Bandwidth
    20/40MHz Selection of Channel Width
    Transmission Rate
    Up to 300Mbps
    Transmission Distance
    200M (For longer transmission distances, you can pair with a higher gain antenna.)
    Operating Protocol
    802.11a/n
  • Battery
    Battery Module Integrated
    5200mAH Rechargeable Lithium Battery Pack
    Battery Life Extension
    >6h
