4K Mobile Wireless
4K UHD/TOF/Wireless

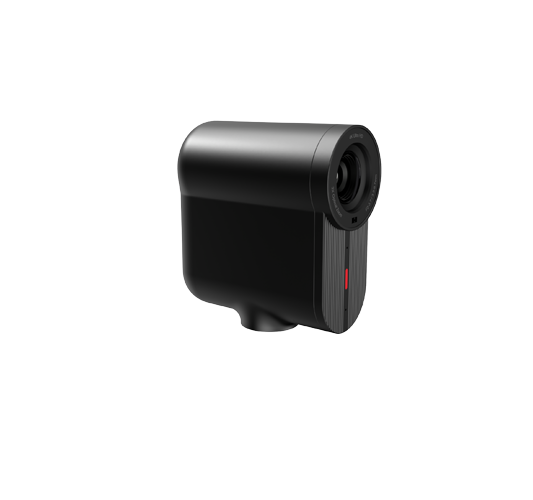

Q03ZW4K Mobile Wireless
4K UHD/TOF/Wireless
Q03ZW Q03ZW
4K, 9x Hybrid Zoom, Wireless, and Built-in Battery, TOF, Gesture Control
Its 4K UHD lens outputs high - quality live - streaming videos. Compact and cordless, it’s easy to carry. It wirelessly connects to a mobile app for preview, multi - cam switching and control, and supports various platforms.

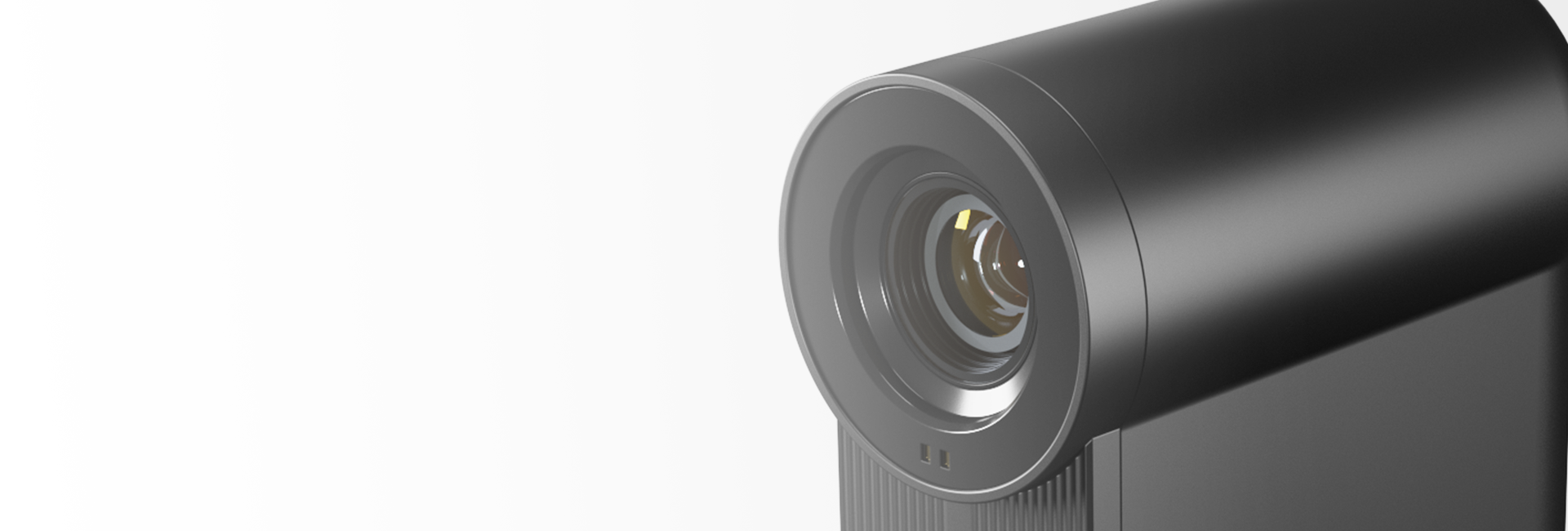

UHD Lens
Ultra High-Definition Lens Gives You a Higher-Definition Vision
-
Wireless ConnectivityGet Rid of the Shackles of Connecting Wires

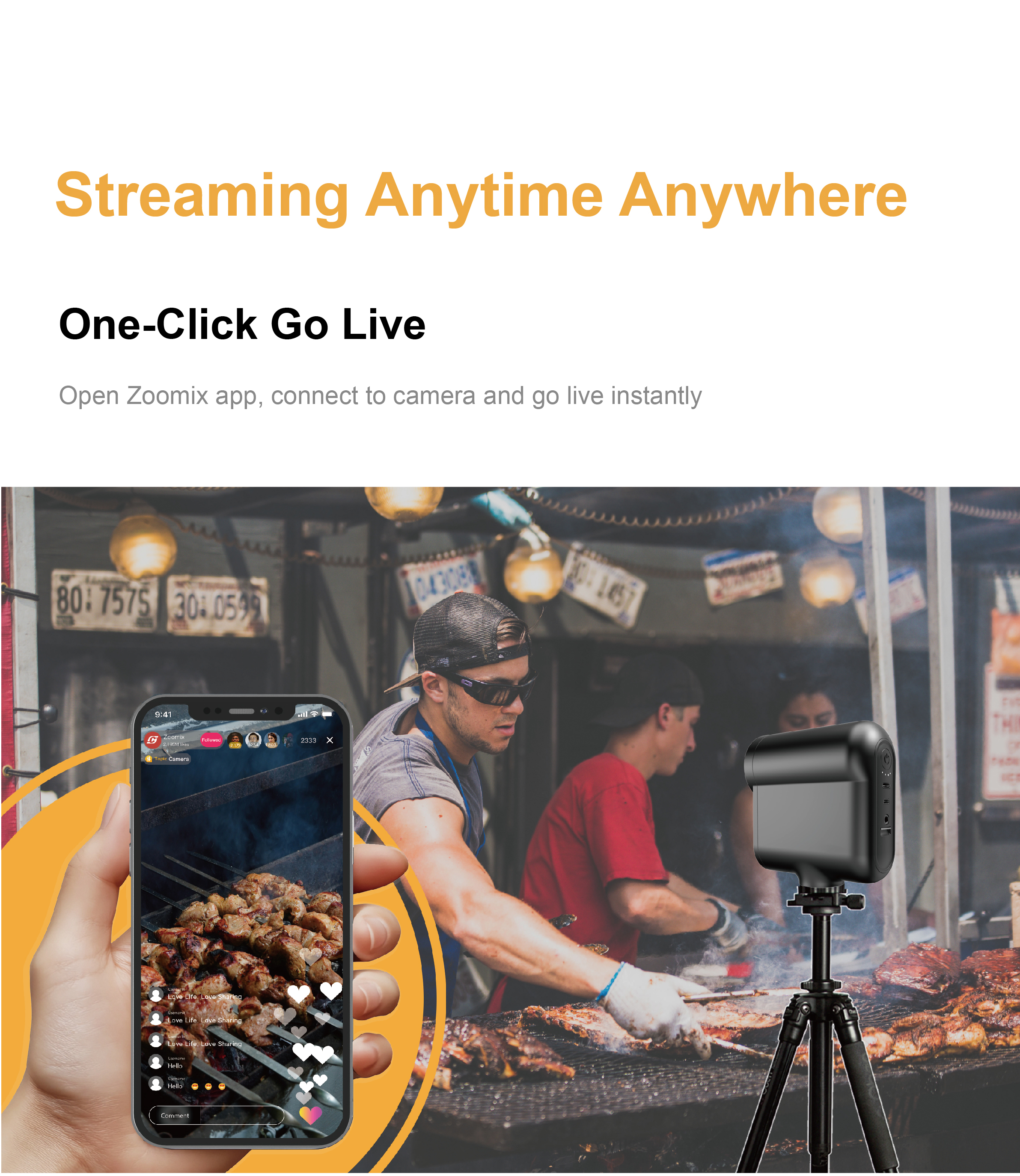

Preview on Connected Mobile Devices
The camera can wirelessly connect to a mobile app for video preview, multi-camera switching, camera control, and supports various live streaming platforms. One mobile phone can easily achieve multi-camera live streaming.
-

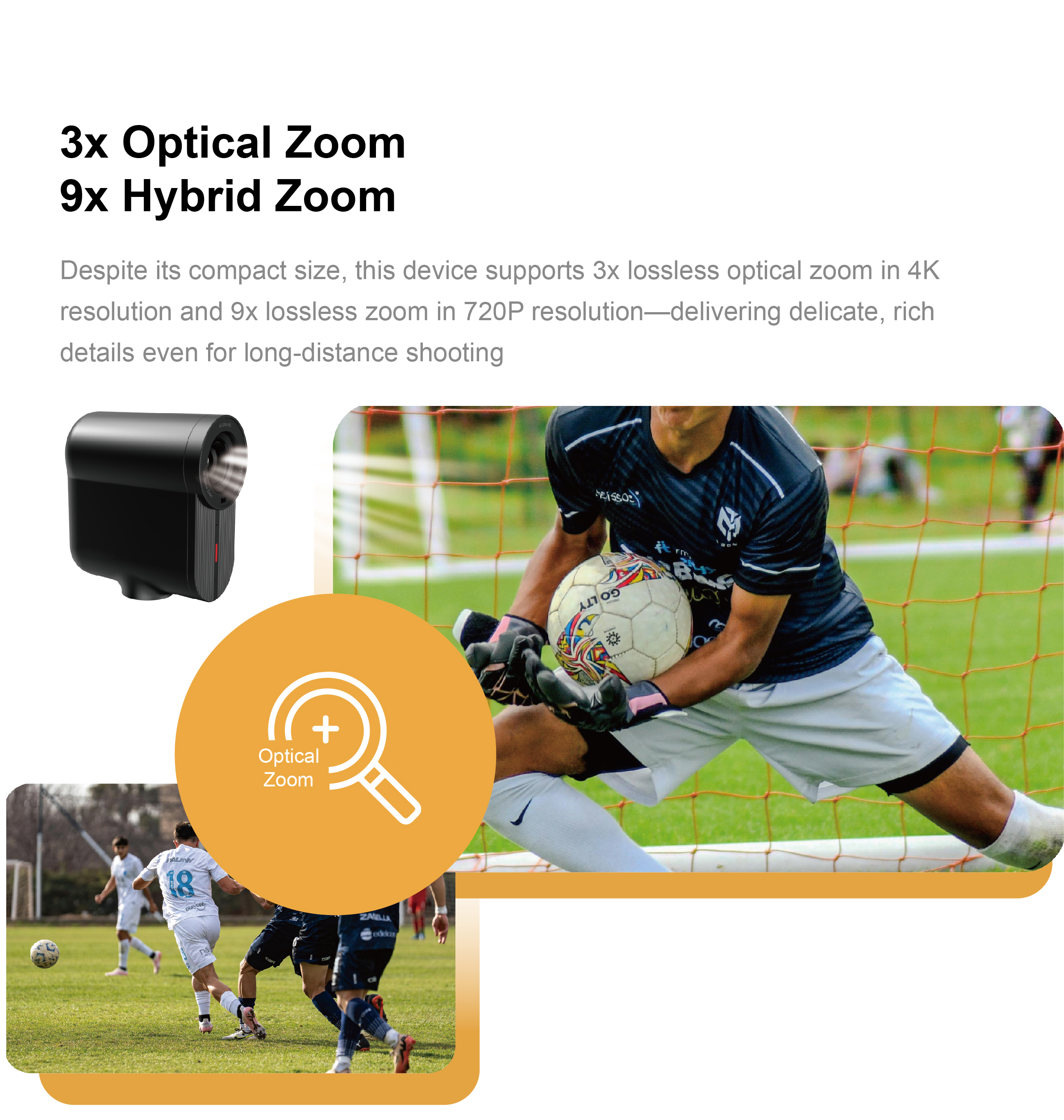

4K Ultra HD Image, 9x Hybrid ZoomExcellent Image Quality and Details
Built-in TOF Sensor for Fast Autofocus
The camera allows flexible adjustment of focal length via a mobile app to capture subjects at various distances, enabling diverse shooting effects.
-
Built-in Large-Capacity Lithium BatteryLong Battery Life
Up to 6 Hours of Continuous Use
The camera can operate without external power supply, without wiring, and can easily adapt to complex indoor and outdoor shooting scenarios.
-

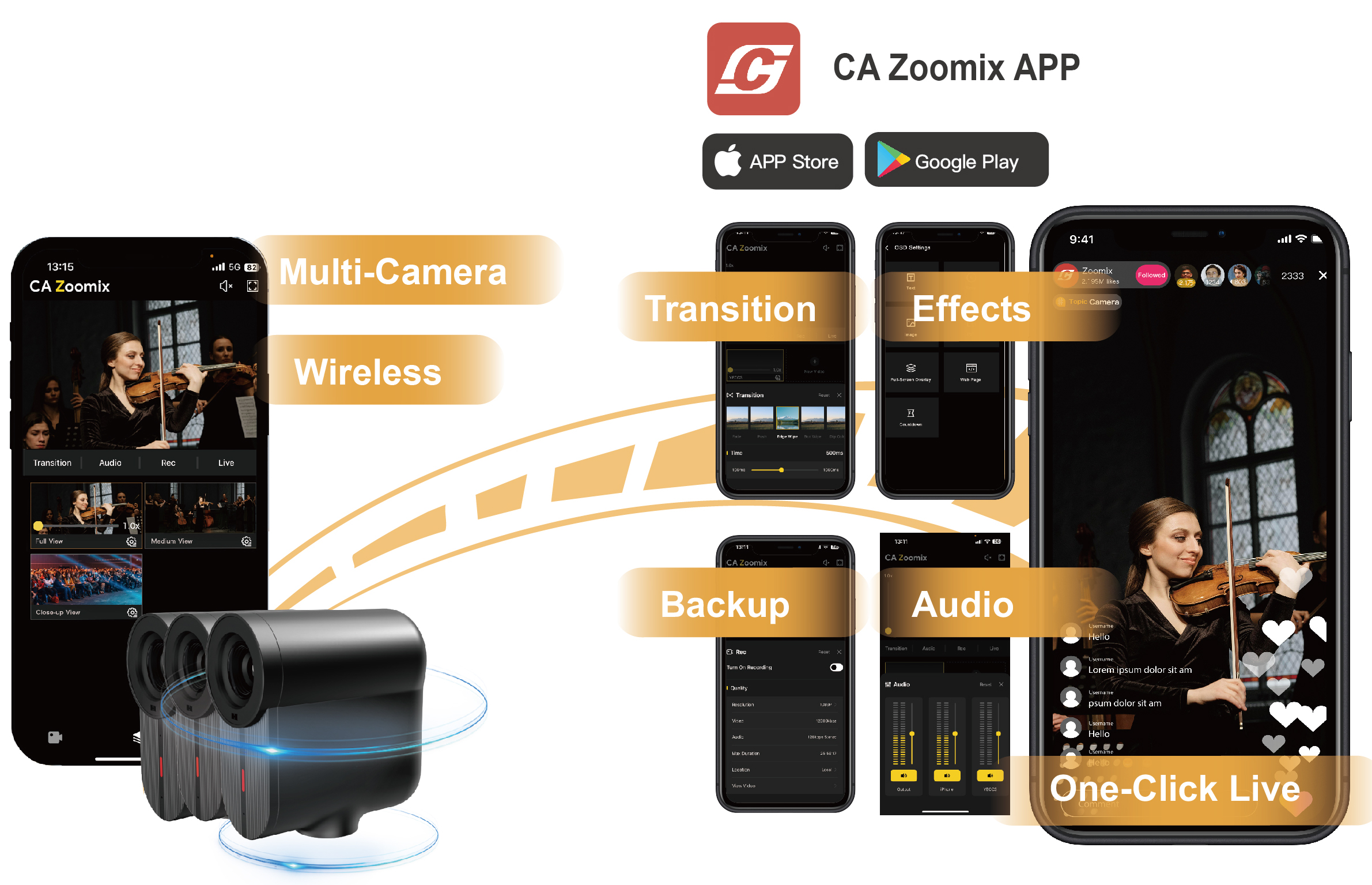

Mobile App Operation SupportCompatible with Multiple Live Streaming Platforms
Compatible with Most Live Streaming Software and Devices on the Market
With a paired mobile phone, multi-camera live streaming can be easily achieved. The wide compatibility makes the camera suitable for a wide range of applications, meeting diverse live streaming needs.
-
Rich Interfaces, Wide ApplicationsUSB 3.0、HDMI Mini、TF Cade、Audio
Gesture Control
More convenient operation
Only Use Gestures to Indicate
During recording/live streaming
It won’t be interrupted due to operations.
Support Recognition of Multiple Gestures
You can control the camera through gestures such as zooming in/out.
Efficient, Fast, and Intelligent
Intelligent algorithms help the camera quickly recognize gestures and respond accordingly.
Applications
Live Commerce/Live Broadcast of Content/Live Broadcast of Activities/Live Broadcast of Events
- Technical Data
- Q03ZW
-
Camera
- Image Sensor
- 1/2.8” CMOS, 8.29MP
- Focal Lens
- f=3.3mm~9.7mm
- Iris
- F2~F3.7
- HFOV
- 81.4° ~ 31.3°
- Zoom
- Optical: 3X, Digital: 3X
- Focus
- Auto/Manual
- MIC
- 2
- TOF
- Support
- OSD
- Support
-
Overall Performance
- Battery
- 9000mah, ≥6h
- WIFI& Blue Tooth
- 2.4G/5G Dual band wireless, Distance≥ 30m； Support Bluetooth 5.0
- Multi-Camera Setups
- Supports 3-camera networking
- Compatible APPS
- Youtube, Facebook Live, Twitch (Native), Vimeo, Tiktok, Livestream……
-
Interface
- HDMI
- 1 x HDMI Out, with audio, 4KP30, 1080P30, 720P30
- Network
- 1x2.4G/5G WIFI; 1.4KP30, 1080P30, 720P30, 360P30; 2.Support H.264； 3.Audio Compression: AAC; NDI: 4KP30, 1080P30, 720P30, 360P30
- USB 3.0
- 1xUSB 3.0 Type-C; USB3.0: 1. Support UVC1.1; 2. UVC support YUY2： 1080P30, 720P30, 360P30; 3. H.264/MJPEG: 4KP30, 1080P30, 720/P30, 360P30; 4.UAC Audio Format PCM
- Audio
- 1 × LINE IN, 3.5mm
- TF Card
- Support
- Power
- USB TYPE-C
- Wireless Control
- Mobile phone APP
-
General
- Power
- <5W
- Operating Environment
- Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90%RH
- Storage Environment
- Temperature: -20°C ~ +60°C, Relative Humidity: 10%RH ~ 95%RH
- Dimensions(L×W×H)
- 100mm × 100mm × 50mm
- Weight
- <0.5kg
