1/1.8"
30x Optical Zoom/4KP60@Dual Cam
PVC-2301/1.8"
30x Optical Zoom/4KP60@Dual Cam

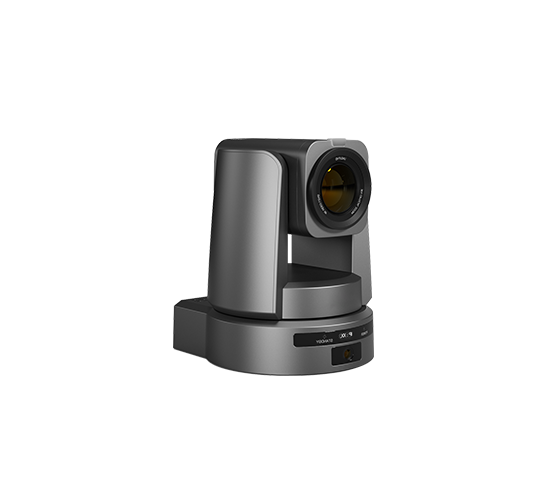

PVC-230 PVC-230

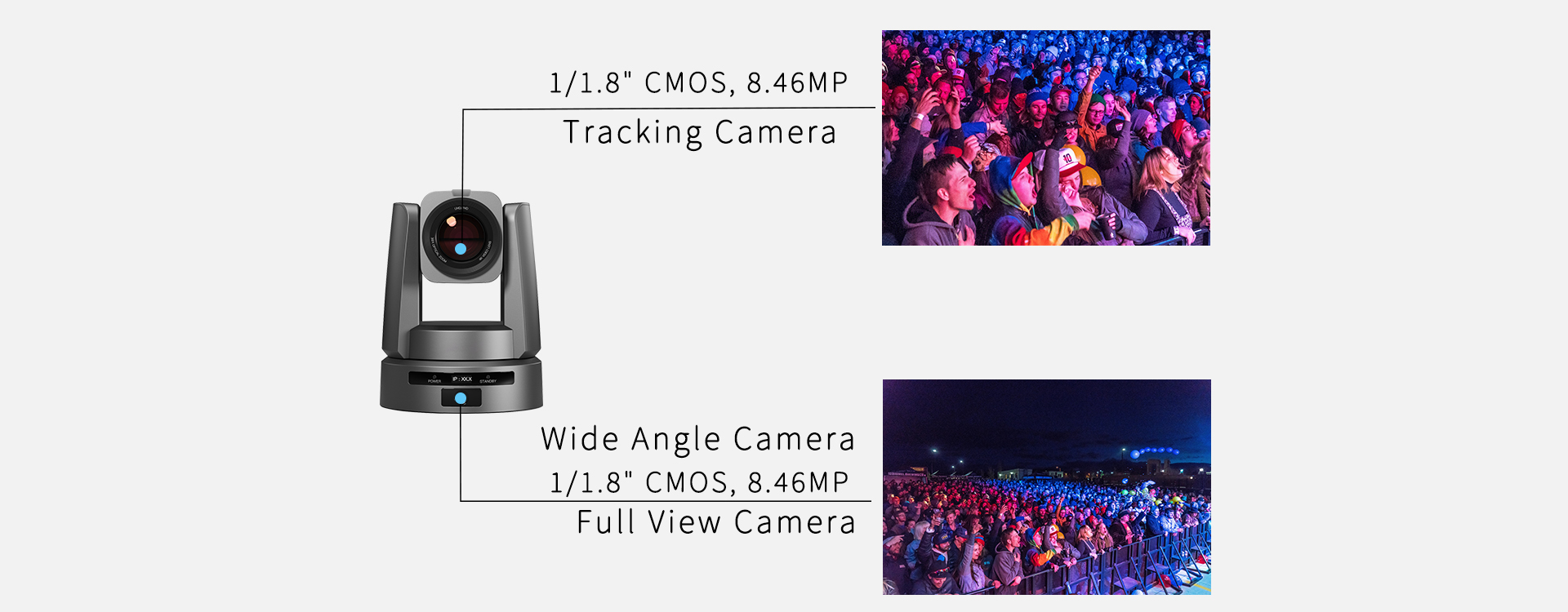

Simultaneous Output of 4K Close-up Image and 4K Full View Image
PVC-230 has two 1/1.8 inch dual cams, 8.4MP, and can output up to 4KP60 video frames. 12G-SDI optional and supports NDI HX3, DanteAV-H, SRT. Optional Full NDI, HDBaseT, or SDVoE.

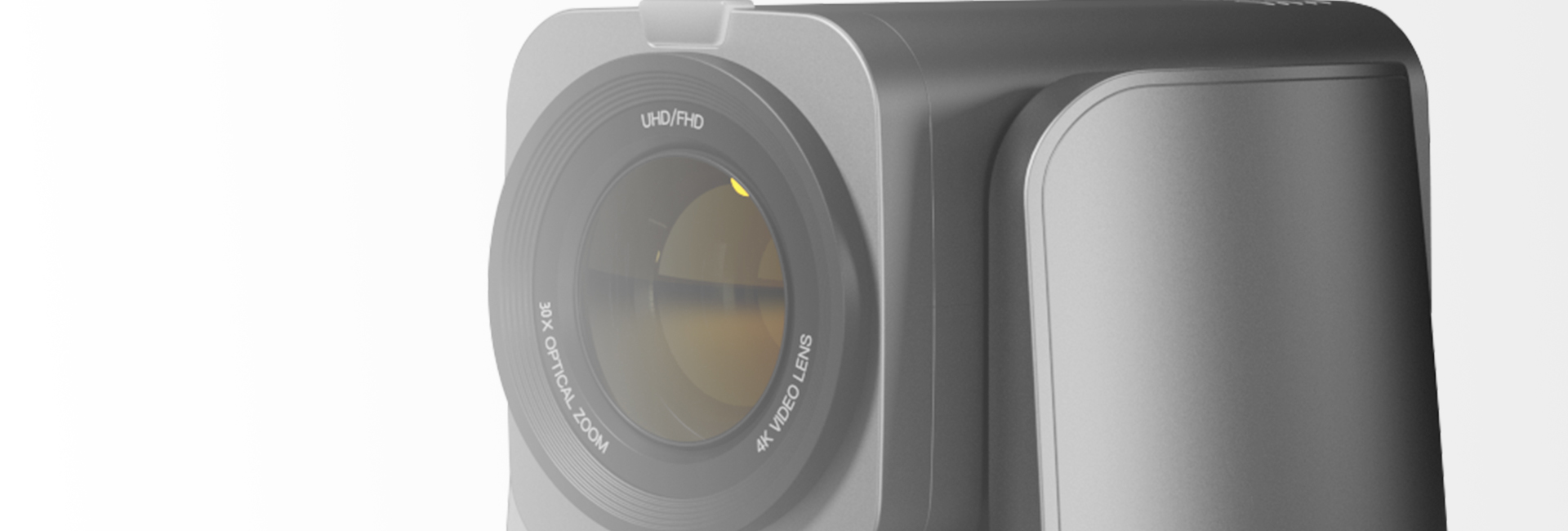

UHD Lens
Ultra High Definition Lens Gives You a Higher-Definition Vision
-
Ultra High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolution
4KP60
Enjoy a Clear PictureDual 1/1.8-inch CMOS, it delivers super UHD full-view and close-up view video for your work application.
-
-
Optional 12G-SDIPowerful Transmission Capability
Optional 12G-SDI, Support 3G-SDI, HDMI, RJ45,USB3.0
PVC-230 comes with a variety of interfaces to meet most of the users’ needs in different scenarios. The optional 12G-SDI supports improved video quality for users.
-
High Quality 30x Optical ZoomSuitable for larger scenarios
30x Optical Zoom Show More Detail
With the 30x optical zoom technology, it can thoroughly explore the on - site details. Even when dealing with fast - moving people, it can achieve clear and smooth image capture, providing reliable visual support for professional application scenarios.
-

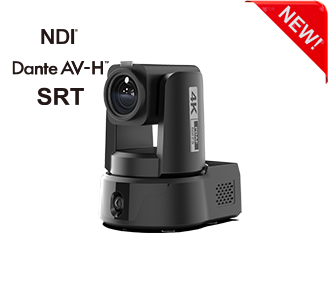

Supports Most Mainstream ProtocolsFaster, Clearer, and Safer Transmission
NDI HX3, Dante AV-H, SRT
The camera supports protocols such as NDI HX3, Dante AV-H, SRT, Optional Full NDI, HDBaseT, or SDVoE； enabling clearer, faster, and more secure video transmission.
-

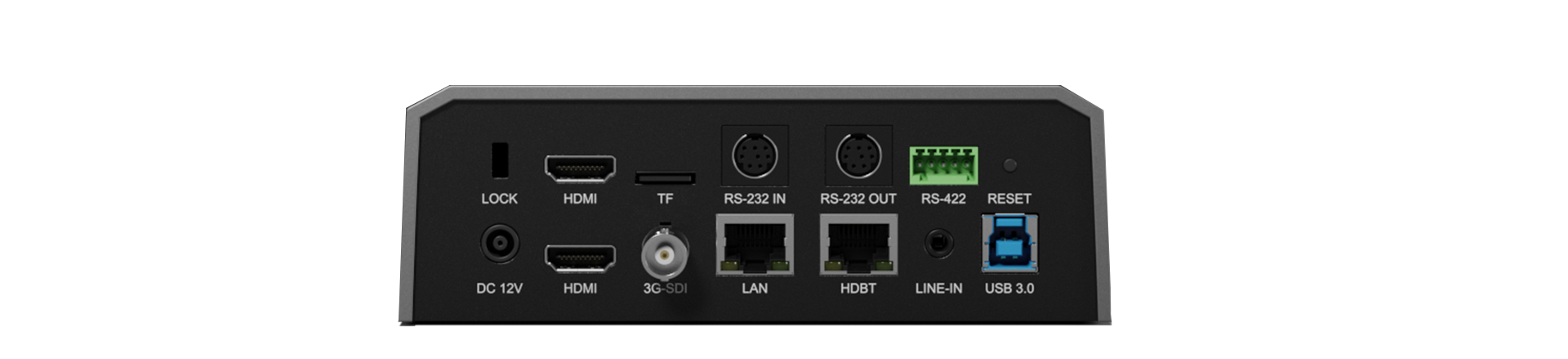

InterfaceOptional 12G-SDI, Support 3G-SDI, HDMI, LAN, USB 3.0, LINE IN.
Lecturer Tracking
Accurate Identification & Stable Tracking
In the Crowd
Automatically Identify & Lock Lecturer and Keep Tracking
Strong Ability
Track Even if Lecturer Wears Mask.
Intelligent Adjustment
Auto Adjust Tilt Angle as per Lecturer's Height.
Gesture Control
More convenient operation
Only Use Gestures to Indicate
During recording/live streaming
It won’t be interrupted due to operations.
Support Recognition of Multiple Gestures
You can control the camera through gestures such as zooming in/out.
Efficient, Fast, and Intelligent
Intelligent algorithms help the camera quickly recognize gestures and respond accordingly.
Auto Framing with No Man Involved
Using Intelligent Image Algorithm.
Auto Frame All Attendees
Cameras auto zooms and covers all the attendees in the room.
Auto Zoom in for Attendee Leaving
Camera auto zooms in when there is attendee leaving the room.
Auto Zoom Out for New Attendees
Camera auto zooms out when there are new attendees entering the room.
Anti Interference
Not Affected by Moving Objects and External Environment
Intelligent Identification
The camera can recognize and frame the attendees even if they turn their backs to the camera.
Intelligent Identification
Intelligent Resolution of Wall Portraits.
Strong Anti-Interference Ability
The camera is not disturbed by moving objects.
Applications
Education/Conference/Broadcasting/Events
- Technical Data
- PVC-230
-
Tracking Camera
- Image Sensor
- 1/1.8” CMOS, 8.46MP, up to 4KP60
- Focal Lens
- f=6.9mm~215mm
- Iris
- F1.3~F4.6
- HFOV
- 59°~2°
- Zoom
- Optical: 30x; Digital: 16x
-
Full View Camera
- Image Sensor
- 1/1.8” CMOS, 8.46MP, max 4KP60
- Focal Distance
- f=4.4mm
- Iris
- F2.0
- HFOV
- 85°
-
PTZ
- Pan
- -170° ~ +170°, 0.05° ~ 120°/s
- Tilt
- -30° ~ +90°, 0.05° ~ 90°/s
- Preset Number
- 256
-
Interface
- SDI
- 1 × 3G-SDI, max 1080P60/P59.94/P50;1080I60/I59.94/I50; 1 × 12G-SDI (Optional ), max 4KP60; Support broadcast resolution: max 4KP59.94/P29.97
- Network
- 1 x RJ45, 100M/1000M adaptive Ethernet port, standard POE, with audio output AAC/G.711Video formats: H.264/H.265/MJPEG; up to 4KP60; Network protocols supported: RTSP/RTMP/RTMPS/Visca Over IP/ONVIF/SRT/NDI HX2/NDI HX3/Dante AV-H; Dual output for main and sub streams; WEB UI, CGI, HTTP
- USB
- 1 x USB 3.0 Type-A(compatible with HOST), supports audio output UAC, supports color space RGB 420; USB 3.0 is backward compatible with USB 2.0: UVC supports UVC 1.1 protocol; UVC video formats supported: H.264/H.265/MJPEG: up to 4KP60; YUY2/NV12: up to 1080P30
- HDMI
- 1 x HDMI 2.0, with audio output, color space supports YUV/RGB 444 (8bit), YUV 422 (10bit), YUV 420 (8bit), up to 4KP60/P59.94/P50; 1080i60/i59.94/i50;
- One of Three Options
- Choose one from Full NDI, HDBaseT, and SDVoE; Full NDI, capable of audio output, supports POE++; SDVoE, capable of audio output, supports POE++; HD-BaseT, capable of audio output, supports POE++;
- Audio
- 2 Audio-Input XLR Connectors, with Phantom Power Support; Supports ACC/UAC; Sample Rates Supported: 16k, 32k, 48k
- Control Interface
- 1 RS-232/422 Port
- Reset Button
- Restore Factory Settings
- Remote Interface
- IR Remote control
- Security Lock Slot
- 1 Kensington Lock
- Memory Card
- Supports 1 external Micro SD slot, with a maximum storage capacity of 2TB.
-
General
- Power
- DC12V, 5A
- Indicator Light
- Power light, status light, dual Tally lights
- Installation Method
- Upright, inverted(panoramic lens adjustable±20°)
- Remote Control Range
- 15m, dual infrared in front and rear of camera
- Operating Temperature
- 0°C ~ +40°C
- Storage Temperature
- -20°C ~ +60°C
- Dimensions(L×W×H)
- 239mm*208mm*291mm
-
- Focusing Method
- CDAF、Face AF
- Image Mode
- Supports one-click switching between multiple image modes
- Wide Dynamic Range
- Dynamic Range: 0/1/2/3/4/5
- Metering Mode
- Top, Bottom, Center, Average, Left, Right
