1080P60

Support Auto Framing

AMC-E200TV4

1080P60

Support Auto Framing

AMC-E200TV4

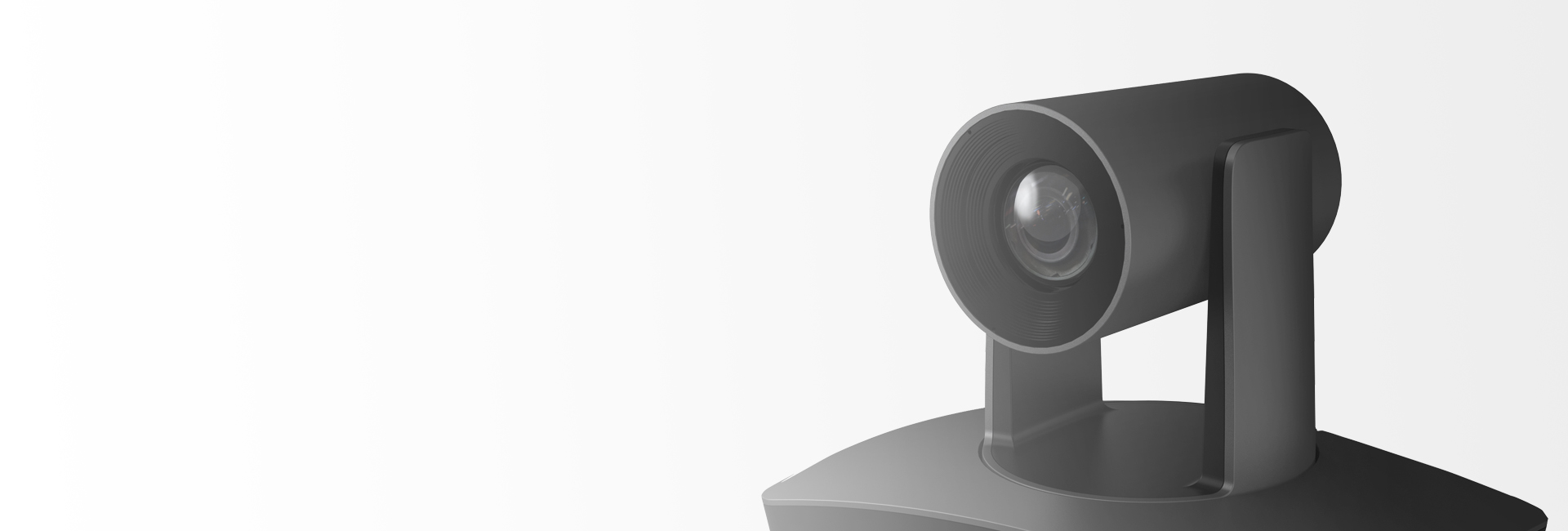

Dual Auto Framing PTZ Camera

AMC-E200TV4 is a dual-load camera, which adopts auto framing function, which can auto frame all attendees. It provides up to 1080P60 outputs to meet various video conference needs.

HD Lens
High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-E200TV4

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 1080P resolution

Wide Angle HD Lens
Transmitting Clear Pictures

1080P60 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.


Interface
Support HDMI, 3G-SDI, LAN, USB, LINE IN. Support Dual Stream


Auto Framing with No Man Involved
Using Intelligent Image Algorithm
Feature One
Feature Two
Feature Three

Auto Frame All Attendees

Cameras auto zooms and covers all the attendees in the room.

Watch Video

Auto Zoom in for Attendee Leaving

Camera auto zooms in when there is attendee leaving the room.

Watch Video

Auto Zoom Out for New Attendees

Camera auto zooms out when there are new attendees entering the room.

Watch Video
Anti Interference
Not Affected by Moving Objects and External Environment
Feature One
Feature Two
Feature three

Intelligent Identification

The camera can recognize and frame the attendees even if they turn their backs to the camera.


The face orientation of the attendees has no effect on camera recognition.

Intelligent Identification

Intelligent Resolution of Wall Portraits.


Strong Anti-Interference Ability

The camera is not disturbed by moving objects.


Applications
Personal Office/Huddle Room/Small Room/Medium Room


AMC-E200TV4
Technical Data
AMC-E200TV4
  • Camera

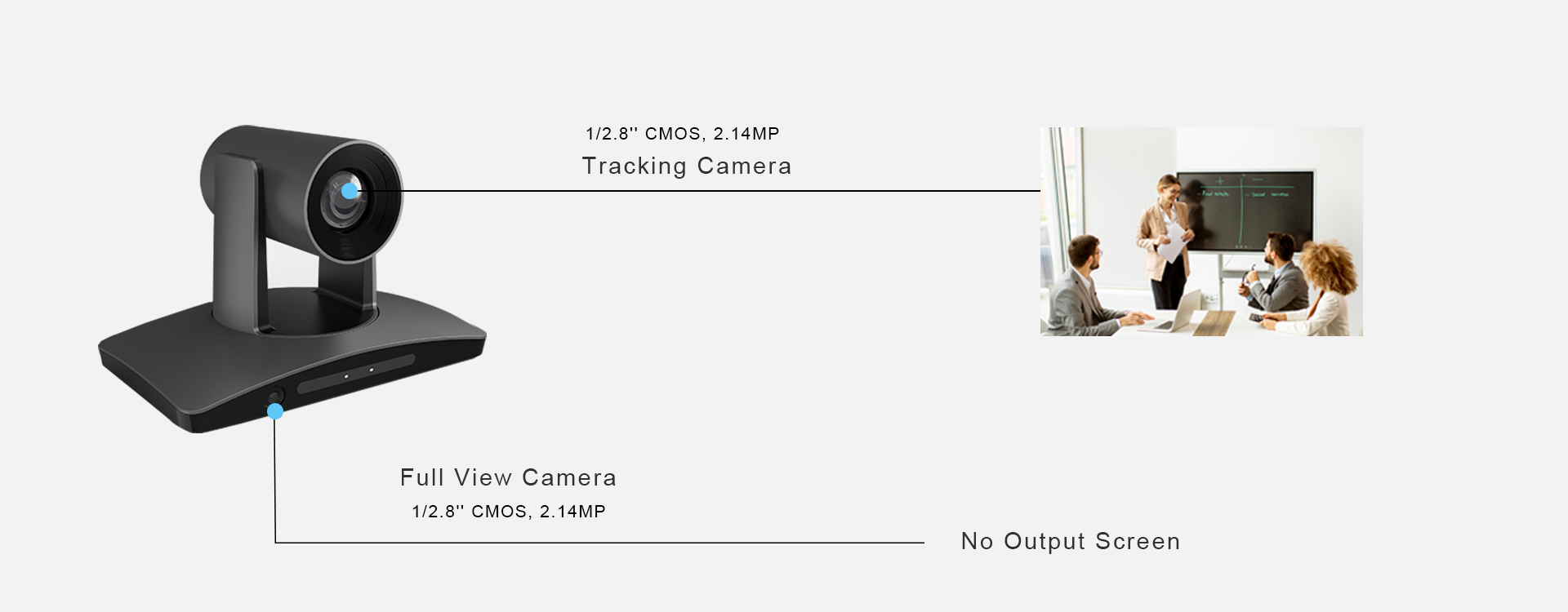

    Image Sensor
    1/2.8” CMOS, 2.14MP
    Focal Lens
    3.9mm~46.8mm
    Iris
    F1.6~F2.8
    FOV Horizontal
    72.5°~6.3°
    Zoom
    Optical: 12X, Digital: 12X
    Focus
    Auto, Manual, PTZ Trigger, One Push
    Exposure
    Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
    Shutter Speed
    1/1 ~ 1/10,000s
    AGC
    Auto, Manual
    White Balance
    Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
    SN Ratio
    ≥50dB
  • Full View Camera
    Image Sensor
    1/2.8” CMOS, 2.14MP
    Lens
    Manual Fixed Focus
    Focal
    2.4mm
    Exposure
    Auto
    White Balance
    Auto
    FOV
    Horizontal: 88°, Vertical: 54°
  • PTZ
    Pan
    -170° ~ +170°, 0.1° ~ 120°/S
    Tilt
    -30° ~ +90°, 0.1° ~ 90°/S
    Preset Number
    64
    Control Interface
    RS-232 In, RS-232 Out
    Protocol
    PELCO-D, VISCA, UVC1.1
  • HD Video
    Video Output
    3G-SDI, HDMI, USB3.0
    Video Form
    1080P60/P50/P30/P25/P59.94/P29.97, 720P60/P50/P59.94
  • Network
    Network Interface
    10M/100M RJ45, POE(Optional)
    Max Image Size
    1080P60
    Image Compression
    H.264/H.265
    Audio Compression
    AAC
    Protocols
    ONVIF, RTSP, RTMP, NDI, SRT
    Dual Stream
    Support
  • General
    Protocols
    VISCA
    Power Consumption
    <15W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    243mm×157mm×163mm
    Weight
    1.2KG
