4KP30
Output Clear Pictures in Real Time
AMC-H12024KP30
Output Clear Pictures in Real Time
AMC-H1202 AMC-H1202
HD Image Quality

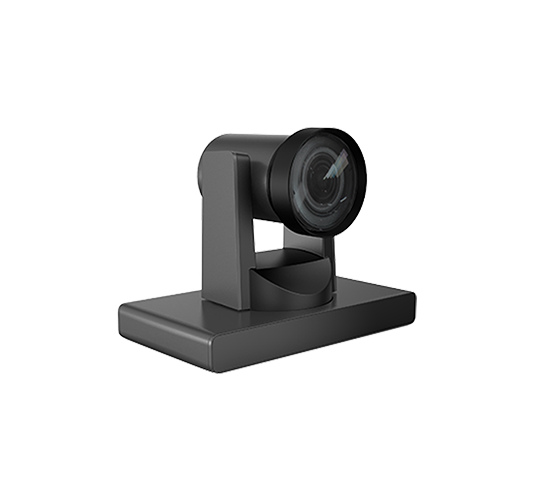

AMC series UHD PTZ camera, with ultra-low delay, adopts high-quality HD lens and outputs 1080p HD pictures.
UHD Lens
Ultra High-Definition Lens Gives You a Higher-Definition Vision
-
High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolution
Wide Angle UHD Lens
Transmitting Clear Pictures4KP30 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency.
-
Delicate ColorRich Details
High Color Reduction
Full Display of Live HD PicturesThe excellent color restoration ability makes the audience in front of the screen feel immersive.
-
InterfaceConnect and Collaborate with Ease, Providing Ethernet, HDMI, 3G-SDI and Optional HDBaseT Outputs
Applications
Conference/Education/Training/Event
- Technical Data
- AMC-H1202
-
Camera
- Image Sensor
- 1/1.8” CMOS, 8.41MP
- Focal Lens
- 4.2mm~50.4mm
- Iris
- F1.8~F2.8
- FOV Horizontal
- 82.6°~8°
- Zoom
- Optical: 12X, Digital: 12X
- Focus
- Auto, Manual, PTZ Trigger, One Push
- Shutter Speed
- 1/25 ~ 1/10,000s
- AGC
- Auto/Manual
- White Balance
- Auto, Indoor, Outdoor, One Push, Auto Tracking, Sodium, Fluorescent
- Exposure
- Auto, Manual, Shutter Priority, Iris Priority
- BLC
- Support
- SN Ratio
- ≥50dB
- DNR
- 2D/3D
- WDR
- Support
-
PTZ
- Pan
- -170°~+170°, 0.1°~120°/ S
- Tilt
- -30°~+90°, 0.1°~80°/ S
- Preset Number
- 256
- OSD
- Yes
-
Video Format
- Video Output
- 4KP30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50
-
Network
- Max Image Size
- 4KP30
- Video Compression
- H.265/H.264
- Audio Compression
- AAC
- Protocols
- HTTP/RTMP/RTSP/TCP/UDP/ONVIF
- Dual Stream
- Yes
-
Interface
- Video Output
- HDMI, 3G-SDI, HDBaseT(optional)
- Audio Input
- 1×Line In
- Network Interface
- 10M/100/1000M, NDI, POE(optional)
- Control Interface
- RS-232 In , RS-232 Out
-
General
- Protocols
- VISCA, PELCO-P, PELCO-D
- Power
- DC12V
- Power Consumption
- <20W
- Operating Environment
- Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
- Storage Environment
- Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
- Dimensions (L×W×H)
- 251mm×145mm×194mm
- Weight
- <2.2KG
