4KP60
UHD Image Quality
AMC-G530/G520/G5004KP60
UHD Image Quality
AMC-G530/G520/G500 AMC-G530/G520/G500
4KP60 UHD PTZ Camera
AMC series adopts 4K ultra wide-angle lens and advanced network video coding and decoding technology, which supports the output of 4K ultra clear pictures at most.
UHD Lens
Ultra High-Definition Lens Gives You a Higher-Definition Vision

-
High Definition ImagesThe camera gives you clear vision of the scenarios at 4K resolution
Wide Angle UHD Lens
Transmitting Clear Pictures4KP60 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency.
-

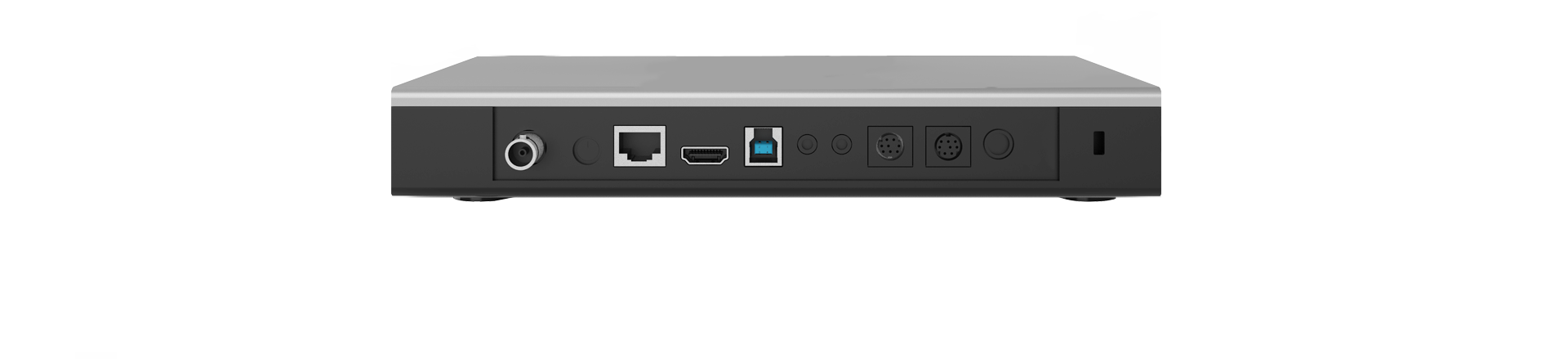

InterfaceSupport HDMI, LAN, USB, LINE IN.
Applications
Conference/Education/Training/Event


- Technical Data
- AMC-G530
- AMC-G520
- AMC-G500
-
Camera
- Focal
- f=5.2mm ~ 155.8mm
- f=5.2 ~ 104mm
- f=3.4mm ~ 40.3mm
- Iris
- F1.8 ~ F5.2
- F1.8 ~ 3.5
- F1.8 ~ F3.6
- Optical Zoom
- 30x
- 20x
- 12x
- HFOV
- 59° ~ 1.2°
- 59°~2.9°
- 81° ~ 7.6°
- Image Sensor
- 1/2.8” CMOS, 8.46MP
- Image
- Auto Focus, Auto Exposure, Auto, White Balance
- SNR
- ≥55dB
- BLC/WDR
- Support
-
PTZ
- Pan
- -130°~+130°, 0.1°~87°/S
- Tilt
- -30°~+90°, 0.1°~67°/S
- Preset Number
- 64
- Menu
- Support
-
Interface
- HDMI
- 1×HDMI 2.0, Video resolution:4KP60/P50/P30/P25, 1080P60/P50/P30/P25,1080I60/I50, 720P60/P50
- USB 2.0
- Support UVC 1.5; MJPEG/H.264, 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25
- Network Interface
- 1×10M/100M/1000M RJ45 POE Max 4KP60
- Audio Compression
- AAC
- Audio Input
- 1×Line In, 3.5mm
- Network Protocol
- RTSP/ONVIF/RTMP/HTTP/TCP/UDP/RTP
- Dual Stream
- Main/Sub
-
General
- Protocols
- VISCA
- Power
- DC12V
- Power Consumption
- <18W
- Operating Environment
- Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
- Storage Environment
- Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
- Dimensions (L×W×H)
- 245mm×146mm×164mm
- Weight
- <2KG
