4KP60

UHD Image Quality

AMC-G500

4KP60

UHD Image Quality

AMC-G500

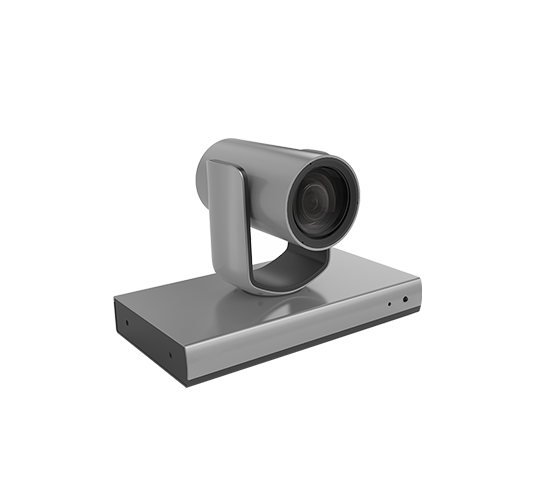

4KP60 UHD PTZ Camera

AMC series adopts 4K ultra wide-angle lens and advanced network video coding and decoding technology, which supports the output of 4K ultra clear pictures at most.

UHD Lens
Ultra High-Definition Lens Gives You a Higher-Definition Vision
  • AMC-G500

    Sensor Size

    Pixel

    Focal Length

    Iris

    HFOV

    Optical Zoom

High Definition Images
The camera gives you clear vision of the scenarios at 4K resolution

Wide Angle UHD Lens
Transmitting Clear Pictures

4KP60 HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency.


Interface
Support HDMI, LAN, USB, LINE IN. Support H.264, H.265


Applications
Conference/Education/Training/Event


AMC-G500
Technical Data
AMC-G500
  • Camera
    Image Sensor
    1/2.8” CMOS, 8.46MP
    Focal Lens
    3.4mm~40.3mm
    Iris
    F1.8-F3.6
    FOV Horizontal
    81°~7.6°
    Zoom
    Optical: 12X, Digital: 12X
    Auto focus/auto exposure/auto white balance
    SNR
    2D & 3D DNR, ≥55dB
    Video Output Format
    4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 720P60/P50
    Image Compression
    H.264/H.265/MJPEG
    BLC/WDR
    Support
  • PTZ
    Pan
    -130°~+130°, 0.2°~80°/S
    Tilt
    -30°~+90°, 0.2°~60°/S
    Preset Number
    256
    Menu
    Support
  • Video / Audio Interface
    SDI(Optional)
    1×3G-SDI, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50
    HDMI
    1×HDMI 2.0, Video resolution:4KP60/P50/P30/P25, 1080P60/P50/P30/P25,1080I60/I50, 720P60/P50
    Audio Input
    1×Line In, 3.5mm
    HD-BaseT(Optional)
    1×HD-BaseT; 4KP30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50
  • USB
    USB Interface
    1×USB 2.0
    Video Format
    MJPEG/H.264, 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25
  • Interface
    Network Interface
    1×10M/100M/1000M RJ45 POE(Optional)
    Video Output Format
    Max 4KP60
    Image Compression
    H.264/H.265
    Audio Compression
    AAC
    Network Protocol
    RTSP/ONVIF/RTMP/HTTP/TCP/UDP/RTP
    Dual Stream
    Main/Sub
  • General
    Protocols
    VISCA
    Power
    DC12V
    Power Consumption
    <18W
    Operating Environment
    Temperature: 0°C ~ +40°C, Relative Humidity: 10%RH ~ 90 %RH
    Storage Environment
    Temperature: -20℃ ~ +60°C, Relative Humidity: 10%RH ~ 95 %RH
    Dimensions (L×W×H)
    245mm×146mm×164mm
    Weight
    <2KG
